HRC COUPLINGProduct Group 06
HRC Couplings
Flexible, easy-to-fit couplings that damp vibration.
8 products · HRC Couplings

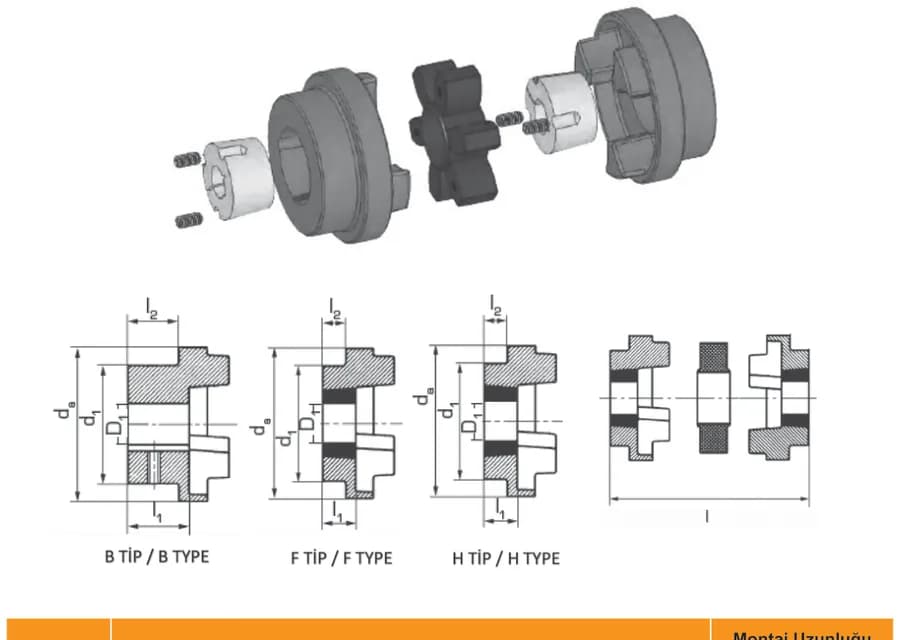

| Product Code | Size | Bush | Min. boremm | Max. boremm | l1mm | l2mm | damm | d1mm | Fitted length l (FF, FH, HH)mm | Max. speedrpm | Nominal torqueNm | Max. torqueNm | Radial misalignmentmm | Axial misalignmentmm | Angular misalignment° | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HRC 70 | 70 | 1008 | 10 | 25 | 22 | 20 | 70 | 60 | 65 | 8300 | 31 | 72 | 0,3 | +0,2 | 1 | |
| HRC 90 | 90 | 1108 | 10 | 25 | 22 | 19,5 | 90 | 70 | 69,5 | 6740 | 80 | 180 | 0,3 | +0,5 | 1 | |
| HRC 110 | 110 | 1610 | 14 | 40 | 25 | 18,5 | 110 | 100 | 82 | 5200 | 160 | 350 | 0,3 | +0,6 | 1 | |
| HRC 130 | 130 | 1610 | 14 | 40 | 25 | 18 | 130 | 105 | 89 | 4100 | 315 | 720 | 0,4 | +0,8 | 1 | |
| HRC 150 | 150 | 2012 | 14 | 50 | 32 | 23,5 | 150 | 115 | 107 | 3600 | 600 | 1500 | 0,4 | +0,9 | 1 | |
| HRC 180 | 180 | 2517 | 16 | 60 | 45 | 34,5 | 180 | 125 | 142 | 3000 | 950 | 2350 | 0,4 | +1,1 | 1 | |
| HRC 230 | 230 | 3020 | 25 | 75 | 51 | 39,5 | 230 | 150 | 164,5 | 2600 | 2000 | 5000 | 0,5 | +1,3 | 1 | |
| HRC 280 | 280 | 3535 | 35 | 90 | 89 | 51 | 280 | 170 | 207,5 | 2200 | 3150 | 7200 | 0,5 | +1,7 | 1 |
Dimensions are taken from the KYS 2025 product catalogue (p. 163). Current values are confirmed with your quote.
