Timing Belt Pulleys

Precise tooth profiles for slip-free, synchronous motion transfer.

34 products · 8M30 · Taper bore

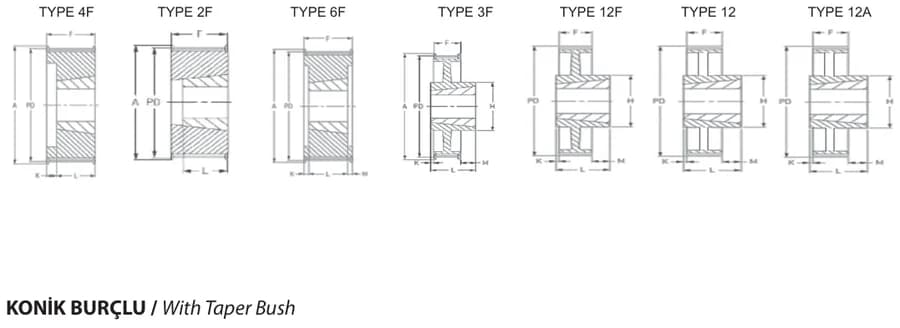

Product Code	Number of teeth	P.Dmm	Amm	Type	Bush	Min. boremm	Max. boremm	Hmm	Kmm	Fmm	Mmm	Lmm
8M30-20 KB	20	50,93	60	4F	1008	9	25	-	16	38	-	22
8M30-21 KB	21	53,47	62	4F	1008	9	25	-	16	38	-	22
8M30-22 KB	22	56,02	65	4F	1008	9	25	-	16	38	-	22
8M30-23 KB	23	58,57	65	4F	1108	9	28	-	16	38	-	22
8M30-24 KB	24	61,12	70	4F	1108	9	28	-	16	38	-	22
8M30-25 KB	25	63,66	71	4F	1108	9	28	-	16	38	-	22
8M30-26 KB	26	66,21	75	4F	1108	9	28	-	16	38	-	22
8M30-27 KB	27	68,75	75	4F	1108	9	28	-	16	38	-	22
8M30-28 KB	28	71,3	80	4F	1210	11	32	-	16	38	-	25
8M30-29 KB	29	73,85	85	2F	1615	14	42	-	-	38	-	38
8M30-30 KB	30	76,39	85	2F	1615	14	42	-	-	38	-	38
8M30-31 KB	31	78,94	87	2F	1615	14	42	-	-	38	-	38
8M30-32 KB	32	81,49	90	2F	1615	14	42	-	-	38	-	38
8M30-33 KB	33	84,03	90	2F	1615	14	42	-	-	38	-	38
8M30-34 KB	34	86,58	95	2F	1615	14	42	-	-	38	-	38
8M30-35 KB	35	89,13	95	2F	1615	14	42	-	-	38	-	38
8M30-36 KB	36	91,67	100	2F	1615	14	42	-	-	38	-	38
8M30-38 KB	38	96,77	105	2F	1615	14	42	-	-	38	-	38
8M30-40 KB	40	101,86	110	2F	1615	14	42	-	-	38	-	38
8M30-42 KB	42	106,95	111	6F	2012	14	50	-	3	38	3	32
8M30-44 KB	44	112,05	121	6F	2012	14	50	-	3	38	3	32
8M30-45 KB	45	114,59	121	6F	2012	14	50	-	3	38	3	32
8M30-48 KB	48	122,23	131	6F	2012	14	50	-	3	38	3	32
8M30-50 KB	50	127,32	131	6F	2012	14	50	-	3	38	3	32
8M30-52 KB	52	132,42	140	6F	2012	14	50	-	3	38	3	32
8M30-56 KB	56	142,6	151	6F	2012	14	50	-	3	38	3	32
8M30-64 KB	64	162,97	172	3F	2517	16	60	120	-	38	7	45
8M30-72 KB	72	183,35	192	12F	2517	16	60	120	-	38	7	45
8M30-80 KB	80	203,72	-	12	2517	16	60	120	-	38	7	45
8M30-90 KB	90	229,18	-	12	2517	16	60	120	-	38	7	45
8M30-112 KB	112	285,21	-	12A	2517	16	60	120	-	38	7	45
8M30-144 KB	144	366,69	-	12A	2517	16	60	120	-	38	7	45
8M30-168 KB	168	427,81	-	12A	3020	25	75	150	-	38	13	51
8M30-192 KB	192	488,92	-	12A	3525	35	90	170	-	38	26	64
