Timing Belt Pulleys

Precise tooth profiles for slip-free, synchronous motion transfer.

44 products · L100 · Pilot bore

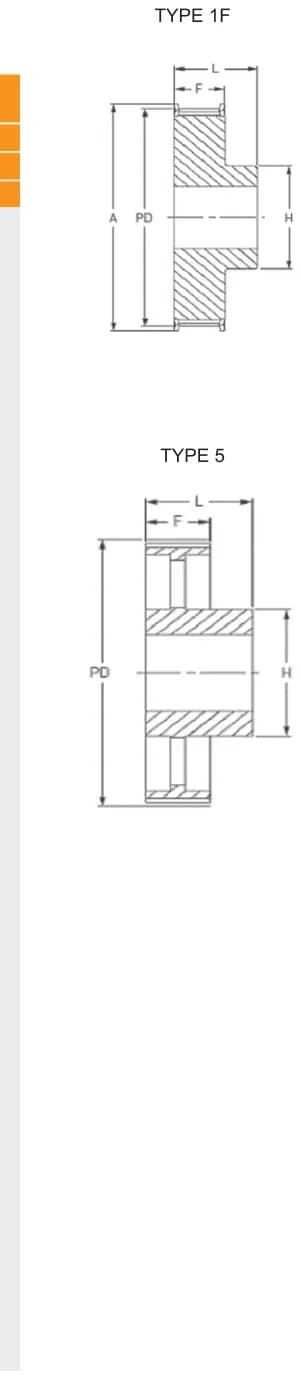

Product Code	Number of teeth	P.Dmm	Amm	Type	Min. boremm	Max. boremm	Hmm	Fmm	Lmm
L100-10	10	30,32	36	1F	6	14	22	32	45
L100-11	11	33,35	39	1F	6	14	22	32	45
L100-12	12	36,38	42	1F	6	20	28	32	45
L100-13	13	39,41	45	1F	6	20	28	32	45
L100-14	14	42,45	48	1F	8	20	28	32	45
L100-15	15	45,48	51	1F	8	23	32	32	45
L100-16	16	48,51	54	1F	8	24	36	32	45
L100-17	17	51,54	57	1F	10	24	38	32	45
L100-18	18	54,57	60	1F	10	27	40	32	45
L100-19	19	57,61	63	1F	10	27	40	32	45
L100-20	20	60,64	66	1F	10	30	46	32	45
L100-21	21	63,67	69	1F	10	30	46	32	45
L100-22	22	66,7	72	1F	10	33	50	32	45
L100-23	23	69,73	78	1F	10	33	50	32	45
L100-24	24	72,77	78	1F	12	33	50	32	45
L100-25	25	75,8	85	1F	12	33	50	32	45
L100-26	26	78,83	85	1F	12	33	50	32	45
L100-27	27	81,86	91	1F	12	33	50	32	45
L100-28	28	84,89	91	1F	12	33	50	32	45
L100-29	29	87,93	91	1F	12	33	50	32	45
L100-30	30	90,96	97	1F	12	33	50	32	45
L100-31	31	93,99	103	1F	12	33	50	32	45
L100-32	32	97,02	103	1F	12	33	50	32	45
L100-33	33	100,05	106	1F	12	33	50	32	45
L100-34	34	103,08	115	1F	12	33	50	32	45
L100-35	35	106,12	115	1F	12	33	50	32	45
L100-36	36	109,15	115	1F	12	33	50	32	45
L100-38	38	115,21	127	1F	12	33	50	32	45
L100-40	40	121,28	127	1F	12	33	50	32	45
L100-42	42	127,34	139	1F	12	33	50	32	45
L100-44	44	133,4	139	1F	12	33	50	32	45
L100-45	45	136,44	152	1F	12	33	50	32	45
L100-48	48	145,53	152	1F	12	33	50	32	45
L100-50	50	151,6	-	5	12	33	50	32	45
L100-52	52	157,66	-	5	12	33	50	32	45
L100-56	56	169,79	-	5	12	33	50	32	45
L100-57	57	172,82	-	5	12	33	50	32	45
L100-60	60	191,91	-	5	15	45	75	32	45
L100-72	72	218,3	-	5	15	45	75	32	45
L100-76	76	230,43	-	5	15	45	75	32	45
L100-84	84	254,68	-	5	15	45	75	32	45
L100-95	95	283,03	-	5	15	45	75	32	45
L100-96	96	291,06	-	5	15	45	75	32	45
L100-120	120	363,83	-	5	15	70	120	32	45
