Timing Belt Pulleys

Precise tooth profiles for slip-free, synchronous motion transfer.

32 products · T5-AT5 · 16 mm · Pilot bore

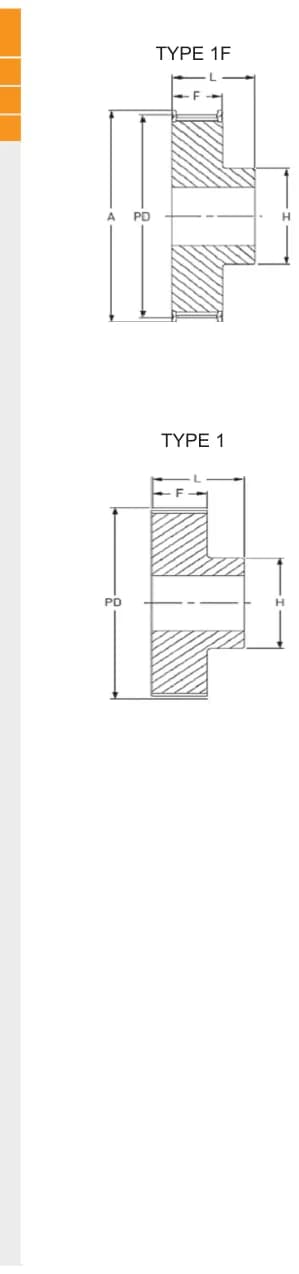

Product Code	Number of teeth	P.Dmm	Amm	Type	Min. boremm	Max. boremm	Hmm	Fmm	Lmm
T5-AT5/16-10	10	15,92	20	1F	4	5	8	21	27
T5-AT5/16-11	11	17,51	22	1F	4	6	10	21	27
T5-AT5/16-12	12	19,1	23	1F	4	7	12	21	27
T5-AT5/16-13	13	20,69	25	1F	6	8	13	21	27
T5-AT5/16-14	14	22,29	26	1F	6	9	14	21	27
T5-AT5/16-15	15	23,88	28	1F	6	10	16	21	27
T5-AT5/16-16	16	25,47	30	1F	6	11	18	21	27
T5-AT5/16-17	17	27,06	32	1F	6	12	19	21	27
T5-AT5/16-18	18	28,65	32	1F	6	13	20	21	27
T5-AT5/16-19	19	30,25	36	1F	6	14	22	21	27
T5-AT5/16-20	20	31,83	36	1F	6	15	24	21	27
T5-AT5/16-21	21	33,42	38	1F	6	15	24	21	27
T5-AT5/16-22	22	35,01	38	1F	6	15	24	21	27
T5-AT5/16-23	23	36,61	42	1F	6	16	25	21	27
T5-AT5/16-24	24	38,21	44	1F	6	17	26	21	27
T5-AT5/16-25	25	39,8	44	1F	6	17	26	21	27
T5-AT5/16-26	26	41,45	44	1F	6	17	26	21	27
T5-AT5/16-27	27	42,98	48	1F	6	19	30	21	27
T5-AT5/16-28	28	44,56	48	1F	8	20	32	21	27
T5-AT5/16-30	30	47,76	51	1F	8	22	34	21	27
T5-AT5/16-32	32	50,94	54	1F	8	24	38	21	27
T5-AT5/16-35	35	55,7	59	1F	8	24	38	21	27
T5-AT5/16-36	36	57,31	63	1F	8	24	38	21	27
T5-AT5/16-38	38	60,48	66	1F	8	26	40	21	27
T5-AT5/16-40	40	63,66	66	1F	8	26	40	21	27
T5-AT5/16-42	42	66,84	71	1	8	26	40	21	27
T5-AT5/16-44	44	70,2	-	1	8	29	45	21	27
T5-AT5/16-45	45	71,62	-	1	8	31	45	21	27
T5-AT5/16-48	48	76,69	-	1	8	32	50	21	27
T5-AT5/16-54	54	85,94	-	1	8	35	55	21	27
T5-AT5/16-57	57	90,72	-	1	8	38	60	21	27
T5-AT5/16-60	60	95,49	-	1	8	42	65	21	27
