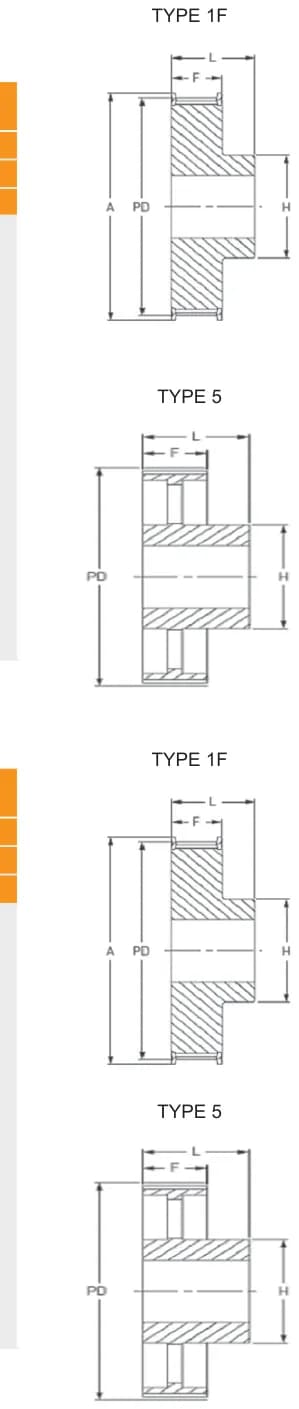

17 products · XH300 · Pilot bore
| Product Code | Number of teeth | P.Dmm | Amm | Type | Min. boremm | Max. boremm | Hmm | Fmm | Lmm | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| XH300-18 | 18 | 127,34 | 141 | 1F | 24 | 67 | 100 | 92,1 | 110 | |
| XH300-19 | 19 | 134,41 | 146 | 1F | 24 | 67 | 100 | 92,1 | 110 | |
| XH300-20 | 20 | 141,49 | 155 | 1F | 24 | 67 | 100 | 92,1 | 110 | |
| XH300-21 | 21 | 148,56 | 169 | 1F | 24 | 73 | 110 | 92,1 | 110 | |
| XH300-22 | 22 | 155,64 | 176 | 1F | 24 | 73 | 110 | 92,1 | 110 | |
| XH300-24 | 24 | 169,79 | 183 | 1F | 24 | 8 | 120 | 92,1 | 110 | |
| XH300-25 | 25 | 176,86 | 198 | 1F | 24 | 80 | 120 | 92,1 | 110 | |
| XH300-26 | 26 | 183,93 | 205 | 1F | 24 | 80 | 120 | 92,1 | 110 | |
| XH300-27 | 27 | 191,01 | 212 | 1F | 24 | 80 | 120 | 92,1 | 110 | |
| XH300-28 | 28 | 198,09 | 212 | 1F | 24 | 80 | 120 | 92,1 | 110 | |
| XH300-30 | 30 | 212,23 | 226 | 1F | 24 | 80 | 120 | 92,1 | 110 | |
| XH300-32 | 32 | 226,38 | 240 | 1F | 24 | 80 | 120 | 92,1 | 110 | |
| XH300-34 | 34 | 240,53 | 256 | 1F | 24 | 80 | 120 | 92,1 | 110 | |
| XH300-38 | 38 | 268,83 | - | 5 | 28 | 100 | 150 | 92,1 | 120 | |
| XH300-40 | 40 | 282,98 | - | 5 | 28 | 100 | 150 | 92,1 | 120 | |
| XH300-48 | 48 | 339,57 | - | 5 | 28 | 100 | 150 | 92,1 | 120 | |
| XH300-60 | 60 | 424,47 | - | 5 | 28 | 100 | 150 | 92,1 | 120 |
Dimensions are taken from the KYS 2025 product catalogue (p. 136). Current values are confirmed with your quote.
