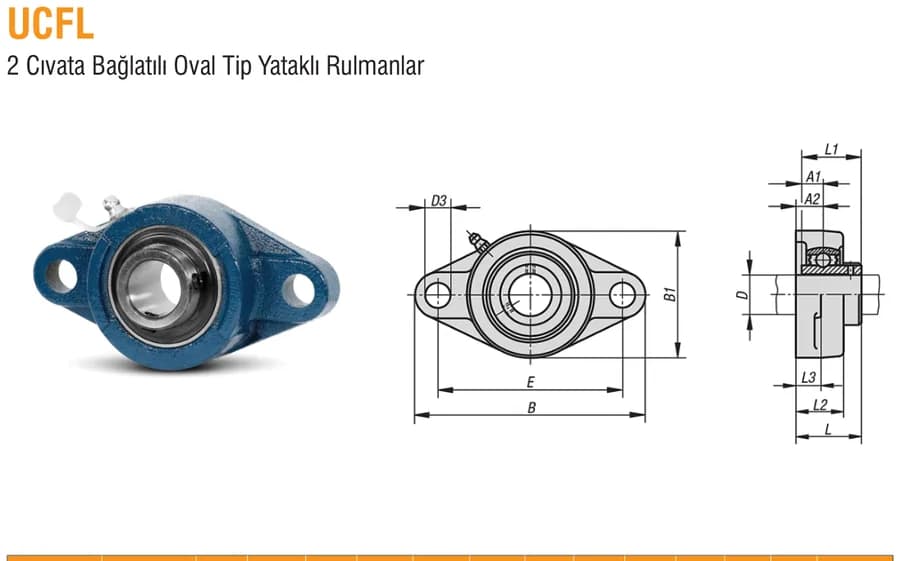

12 products · UCFL · Two-Bolt Oval Flange Bearing Units
| Product Code | Yatak | Dmm | A1mm | A2mm | Bmm | B1mm | D3mm | Emm | Lmm | L1mm | L2mm | L3mm | α | Connecting bolt | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCFL 201 | FL 201 | 12 | 12,7 | 15 | 113 | 60 | 12 | 90 | 33,3 | 31 | 25,5 | 11 | 10° | M10 | |
| UCFL 202 | FL 202 | 15 | 12,7 | 15 | 113 | 60 | 12 | 90 | 33,3 | 31 | 25,5 | 11 | 10° | M10 | |
| UCFL 203 | FL 203 | 17 | 12,7 | 15 | 113 | 60 | 12 | 90 | 33,3 | 31 | 25,5 | 11 | 10° | M10 | |
| UCFL 204 | FL 204 | 20 | 12,7 | 15 | 113 | 60 | 12 | 90 | 33,3 | 31 | 25,5 | 11 | 10° | M10 | |
| UCFL 205 | FL 205 | 25 | 14,3 | 16 | 130 | 68 | 16 | 99 | 35,8 | 34 | 27 | 13 | 10° | M14 | |
| UCFL 206 | FL 206 | 30 | 15,9 | 18 | 148 | 80 | 16 | 117 | 40,2 | 38,1 | 31 | 13 | 10° | M14 | |
| UCFL 207 | FL 207 | 35 | 17,5 | 19 | 161 | 90 | 16 | 130 | 44,4 | 42,9 | 34 | 14 | 10° | M14 | |
| UCFL 208 | FL 208 | 40 | 19 | 21 | 175 | 100 | 16 | 144 | 51,2 | 49,2 | 36 | 14 | 10° | M14 | |
| UCFL 209 | FL 209 | 45 | 19 | 22 | 188 | 108 | 19 | 148 | 52,2 | 49,2 | 38 | 15 | 10° | M16 | |
| UCFL 210 | FL 210 | 50 | 19 | 22 | 197 | 115 | 19 | 157 | 54,6 | 51,6 | 40 | 15 | 10° | M16 | |
| UCFL 211 | FL 211 | 55 | 22,2 | 25 | 224 | 130 | 19 | 184 | 58,4 | 55,6 | 43 | 18 | 10° | M16 | |
| UCFL 212 | FL 212 | 60 | 25,4 | 29 | 250 | 140 | 23 | 202 | 68,7 | 65,1 | 48 | 18 | 10° | M20 |
Dimensions are taken from the KYS 2025 product catalogue (p. 184). Current values are confirmed with your quote.
