Triger Kasnaklar

Kaymasız, senkron hareket iletimi için hassas diş profili.

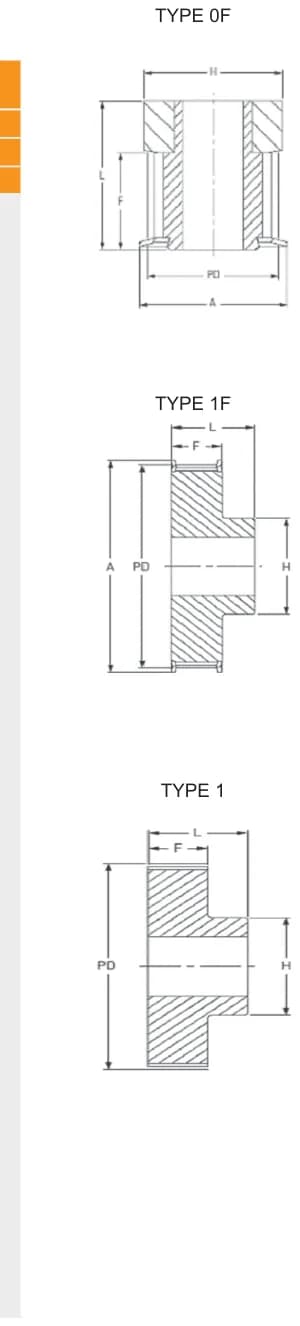

32 ürün · T2,5-AT2,5 · 10 mm · Pilot delikli

Ürün Kodu	Diş sayısı	P.Dmm	Amm	Tip	Delik min.mm	Delik max.mm	Hmm	Fmm	Lmm
T2,5-AT2,5/10-10	10	7,96	10	0F	3	3	10	14	20
T2,5-AT2,5/10-11	11	8,75	12	0F	3	3	11	14	20
T2,5-AT2,5/10-12	12	9,54	13	0F	3	4	13	14	20
T2,5-AT2,5/10-13	13	10,35	14	0F	3	4	14	14	20
T2,5-AT2,5/10-14	14	11,14	15	0F	3	5	15	14	20
T2,5-AT2,5/10-15	15	11,94	15	0F	3	6	15	14	20
T2,5-AT2,5/10-16	16	12,73	16	0F	4	7	16	14	20
T2,5-AT2,5/10-17	17	13,53	17	1F	4	7	16	14	20
T2,5-AT2,5/10-18	18	14,32	18	1F	4	7	10	14	20
T2,5-AT2,5/10-19	19	15,12	18	1F	4	7	10	14	20
T2,5-AT2,5/10-20	20	15,92	20	1F	4	7	11	14	20
T2,5-AT2,5/10-21	21	16,71	20	1F	4	7	11	14	20
T2,5-AT2,5/10-22	22	17,51	23	1F	4	7	10	14	20
T2,5-AT2,5/10-23	23	18,3	23	1F	4	8	12	14	20
T2,5-AT2,5/10-24	24	19,1	23	1F	4	8	12	14	20
T2,5-AT2,5/10-25	25	19,89	25	1F	4	9	13	14	20
T2,5-AT2,5/10-26	26	20,69	25	1F	4	9	14	14	20
T2,5-AT2,5/10-27	27	21,49	25	1F	4	9	14	14	20
T2,5-AT2,5/10-28	28	22,28	28	1F	4	9	14	14	20
T2,5-AT2,5/10-30	30	23,87	32	1F	6	10	16	14	20
T2,5-AT2,5/10-32	32	25,46	36	1F	6	10	16	14	20
T2,5-AT2,5/10-35	35	27,85	36	1F	6	10	18	14	20
T2,5-AT2,5/10-36	36	28,65	38	1F	6	13	20	14	20
T2,5-AT2,5/10-38	38	30,24	38	1F	6	13	22	14	20
T2,5-AT2,5/10-40	40	31,83	42	1F	6	13	22	14	20
T2,5-AT2,5/10-42	42	33,42	-	1	6	15	24	14	20
T2,5-AT2,5/10-44	44	35,01	-	1	6	15	24	14	20
T2,5-AT2,5/10-45	45	35,81	-	1	6	17	26	14	20
T2,5-AT2,5/10-48	48	38,2	-	1	6	17	26	14	20
T2,5-AT2,5/10-54	54	42,97	-	1	6	19	30	14	20
T2,5-AT2,5/10-57	57	45,36	-	1	8	19	32	14	20
T2,5-AT2,5/10-60	60	47,75	-	1	8	22	34	14	20
