Triger Kasnaklar

Kaymasız, senkron hareket iletimi için hassas diş profili.

32 ürün · T2,5-AT2,5 · 4-6 mm · Pilot delikli

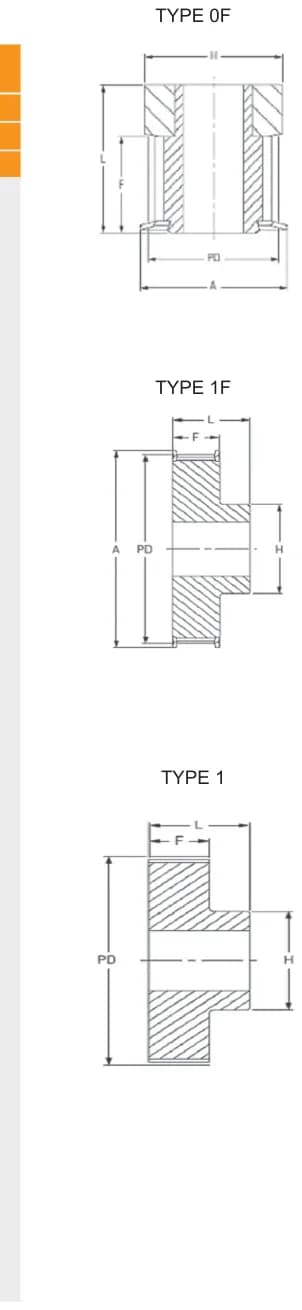

Ürün Kodu	Diş sayısı	P.Dmm	Amm	Tip	Delik min.mm	Delik max.mm	Hmm	Fmm	Lmm
T2,5-AT2,5/4-6-10	10	7,96	10	0F	-	3	10	10	16
T2,5-AT2,5/4-6-11	11	8,75	12	0F	-	3	11	10	16
T2,5-AT2,5/4-6-12	12	9,54	13	0F	-	4	13	10	16
T2,5-AT2,5/4-6-13	13	10,35	14	0F	-	4	14	10	16
T2,5-AT2,5/4-6-14	14	11,14	15	0F	-	5	15	10	16
T2,5-AT2,5/4-6-15	15	11,94	15	0F	-	6	15	10	16
T2,5-AT2,5/4-6-16	16	12,73	16	0F	-	7	16	10	16
T2,5-AT2,5/4-6-17	17	13,53	17	0F	4	7	16	10	16
T2,5-AT2,5/4-6-18	18	14,32	18	1F	4	7	10	10	16
T2,5-AT2,5/4-6-19	19	15,12	18	1F	4	7	10	10	16
T2,5-AT2,5/4-6-20	20	15,92	20	1F	4	7	11	10	16
T2,5-AT2,5/4-6-21	21	16,71	20	1F	4	7	11	10	16
T2,5-AT2,5/4-6-22	22	17,51	23	1F	4	7	10	10	16
T2,5-AT2,5/4-6-23	23	18,3	23	1F	4	8	12	10	16
T2,5-AT2,5/4-6-24	24	19,1	23	1F	4	8	12	10	16
T2,5-AT2,5/4-6-25	25	19,89	25	1F	4	9	13	10	16
T2,5-AT2,5/4-6-26	26	20,69	25	1F	4	9	14	10	16
T2,5-AT2,5/4-6-27	27	21,49	25	1F	4	9	14	10	16
T2,5-AT2,5/4-6-28	28	22,28	28	1F	4	9	14	10	16
T2,5-AT2,5/4-6-30	30	23,87	32	1F	6	10	16	10	16
T2,5-AT2,5/4-6-32	32	25,46	36	1F	6	10	16	10	16
T2,5-AT2,5/4-6-35	35	27,85	36	1F	6	10	18	10	16
T2,5-AT2,5/4-6-36	36	28,65	38	1F	6	13	20	10	16
T2,5-AT2,5/4-6-38	38	30,24	38	1F	6	13	22	10	16
T2,5-AT2,5/4-6-40	40	31,83	42	1F	6	13	22	10	16
T2,5-AT2,5/4-6-42	42	33,42	-	1	6	15	24	10	16
T2,5-AT2,5/4-6-44	44	35,01	-	1	6	15	24	10	16
T2,5-AT2,5/4-6-45	45	35,81	-	1	6	17	26	10	16
T2,5-AT2,5/4-6-48	48	38,2	-	1	6	17	26	10	16
T2,5-AT2,5/4-6-54	54	42,97	-	1	6	19	30	10	16
T2,5-AT2,5/4-6-57	57	45,36	-	1	8	19	32	10	16
T2,5-AT2,5/4-6-60	60	47,75	-	1	8	22	34	10	16
