Triger Kasnaklar

Kaymasız, senkron hareket iletimi için hassas diş profili.

30 ürün · H075 · Pilot delikli

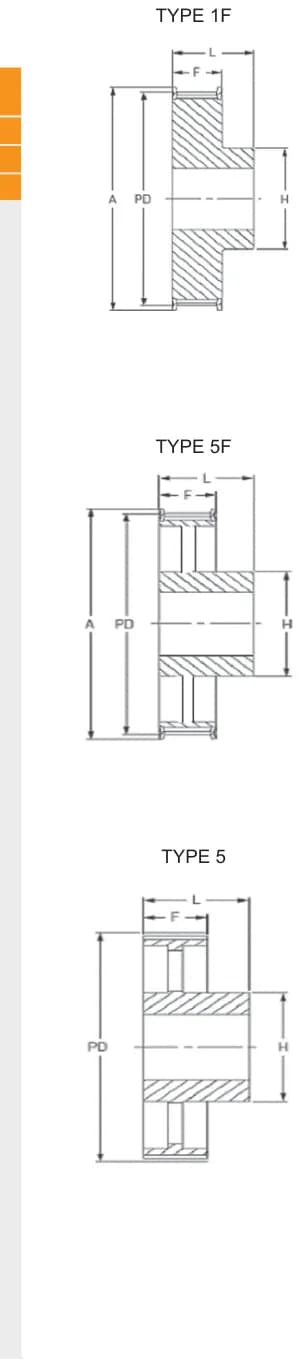

Ürün Kodu	Diş sayısı	P.Dmm	Amm	Tip	Delik min.mm	Delik max.mm	Hmm	Fmm	Lmm
H075-14	14	56,6	63	1F	10	27	40	27	40
H075-15	15	60,64	67	1F	10	30	46	27	40
H075-16	16	64,68	71	1F	10	30	45	27	40
H075-17	17	68,72	75	1F	10	30	46	27	40
H075-18	18	72,77	79	1F	12	36	55	27	40
H075-19	19	76,81	83	1F	12	40	60	27	40
H075-20	20	80,85	87	1F	12	41	62	27	40
H075-21	21	84,89	91	1F	12	43	67	27	40
H075-22	22	88,94	95	1F	12	45	70	27	40
H075-23	23	92,98	98	1F	12	46	72	27	40
H075-24	24	97,02	103	1F	12	47	75	27	40
H075-25	25	101,06	107	1F	12	47	75	27	40
H075-26	26	105,11	111	1F	15	54	80	27	40
H075-27	27	109,15	115	1F	15	54	80	27	40
H075-28	28	113,19	119	1F	15	54	80	27	40
H075-29	29	117,23	123	1F	15	54	80	27	40
H075-30	30	121,28	127	1F	15	54	80	27	40
H075-31	31	125,32	131	1F	15	54	80	27	40
H075-32	32	129,36	135	1F	15	54	80	27	40
H075-33	33	133,4	142	1F	15	54	80	27	40
H075-34	34	137,45	142	1F	15	54	80	27	40
H075-35	35	141,49	151	1F	15	54	80	27	40
H075-36	36	145,53	151	1F	20	54	80	27	40
H075-38	38	153,62	158	1F	20	54	80	27	40
H075-40	40	161,7	168	1F	20	54	80	27	40
H075-42	42	169,79	184	1F	20	54	80	27	40
H075-44	44	177,87	184	5F	20	54	80	27	40
H075-45	45	181,91	192	5F	20	54	80	27	40
H075-48	48	194,04	200	5F	20	54	80	27	40
H075-50	50	202,13	-	5	20	54	80	27	40
