Triger Kasnaklar

Kaymasız, senkron hareket iletimi için hassas diş profili.

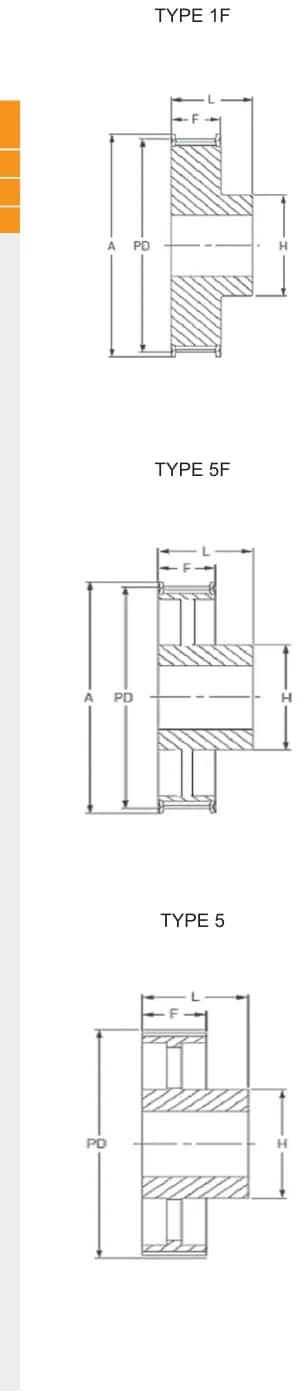

41 ürün · H150 · Pilot delikli

Ürün Kodu	Diş sayısı	P.Dmm	Amm	Tip	Delik min.mm	Delik max.mm	Hmm	Fmm	Lmm
H150-14	14	56,6	63	1F	10	27	40	46	58
H150-15	15	60,64	67	1F	10	30	46	46	58
H150-16	16	64,68	71	1F	10	30	46	46	58
H150-17	17	68,72	75	1F	10	30	46	46	58
H150-18	18	72,77	79	1F	12	36	55	46	58
H150-19	19	76,81	83	1F	12	40	60	46	58
H150-20	20	80,85	87	1F	12	41	62	46	58
H150-21	21	84,89	91	1F	12	43	67	46	58
H150-22	22	88,94	95	1F	12	45	70	46	58
H150-23	23	92,98	98	1F	12	46	72	46	58
H150-24	24	97,02	103	1F	12	47	75	46	58
H150-25	25	101,06	107	1F	12	47	75	46	58
H150-26	26	105,11	111	1F	15	54	80	46	58
H150-27	27	109,15	115	1F	15	54	80	46	58
H150-28	28	113,19	119	1F	15	54	80	46	58
H150-29	29	117,23	123	1F	15	54	80	46	58
H150-30	30	121,28	127	1F	15	54	80	46	58
H150-31	31	125,32	131	1F	15	54	80	46	58
H150-32	32	129,36	135	1F	15	54	80	46	58
H150-33	33	133,4	142	1F	15	54	80	46	58
H150-34	34	137,45	142	1F	15	54	80	46	58
H150-35	35	141,49	151	1F	15	54	80	46	58
H150-36	36	145,53	151	1F	20	54	80	46	58
H150-38	38	153,62	158	1F	20	54	80	46	58
H150-40	40	161,7	168	1F	20	54	80	46	58
H150-42	42	169,79	184	1F	20	54	80	46	58
H150-44	44	177,87	184	5F	20	54	80	46	58
H150-45	45	181,91	192	5F	20	54	80	46	58
H150-48	48	194,04	200	5F	20	54	90	46	65
H150-50	50	202,13	-	5	20	54	90	46	65
H150-52	52	210,21	-	5	20	54	90	46	65
H150-57	57	230,42	-	5	20	54	90	46	65
H150-58	58	234,47	-	5	20	54	90	46	65
H150-60	60	242,55	-	5	20	70	120	46	65
H150-70	70	282,98	-	5	20	70	120	46	65
H150-72	72	291,06	-	5	20	70	120	46	65
H150-76	76	307,23	-	5	20	70	120	46	65
H150-84	84	339,57	-	5	20	70	120	46	65
H150-96	96	388,08	-	5	24	70	120	46	65
H150-120	120	485,1	-	5	24	70	120	46	65
H150-156	156	630,63	-	5	24	70	120	46	65
