BOLT ON HUBProduct Group 10
Bolt On Hubs
Fan hubs and flanges for taper bush mounting.
5 products · AN type
| Product Code | Bush code | Amm | Bmm | Cmm | Dmm | Emm | Fmm | Gmm | H1mm | H2mm | Imm | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AN 120 | 1210 | 120 | 80 | 75 | 100 | 6,5 | 25 | 6x8,5 | 2,5 | 2,5 | 9,25 | |
| AN 200 | 1610 | 200 | 110 | 90 | 150 | 9 | 25 | 6x7,5 | 2,5 | 2,5 | 8 | |
| AN 270 | 2012 | 270 | 140 | 110 | 190 | 11 | 32 | 6x9,5 | 2,5 | 2,5 | 10,5 | |
| AN 340 | 2517 | 340 | 170 | 125 | 240 | 12 | 45 | 8x11,5 | 2,5 | 2,5 | 16,5 | |
| AN 430 | 3020 | 430 | 220 | 160 | 300 | 16 | 51 | 8x13,5 | 2,5 | 2,5 | 17,5 |

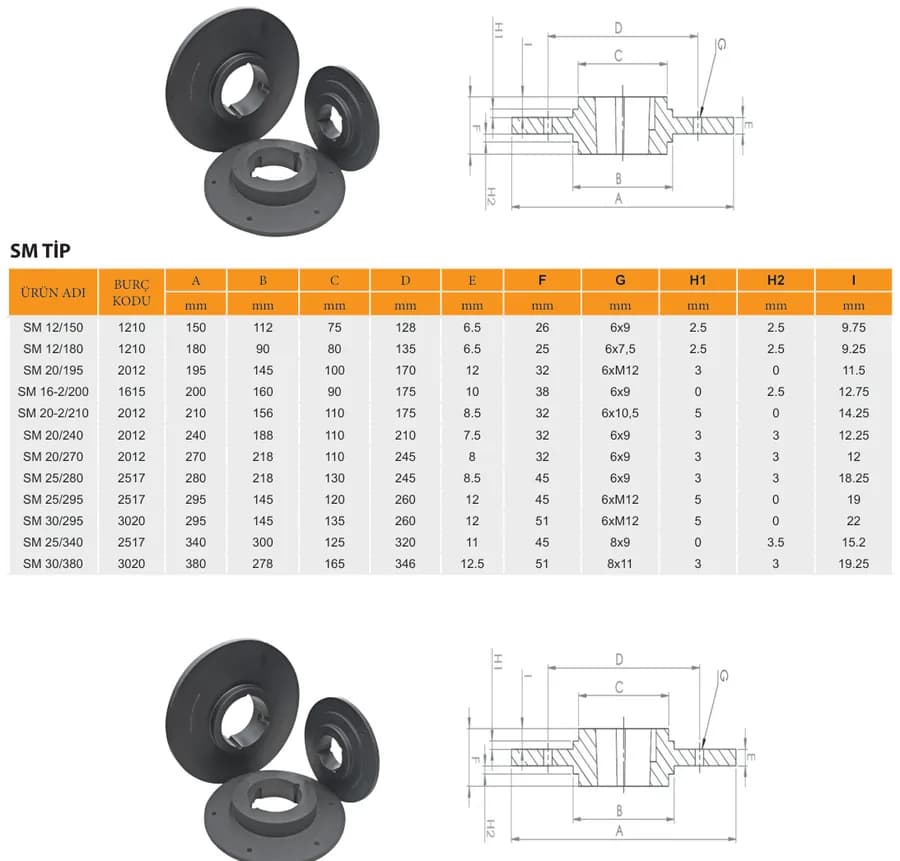

Dimensions are taken from the KYS 2025 product catalogue (p. 170). Current values are confirmed with your quote.
