BOLT ON HUBProduct Group 10
Bolt On Hubs
Fan hubs and flanges for taper bush mounting.

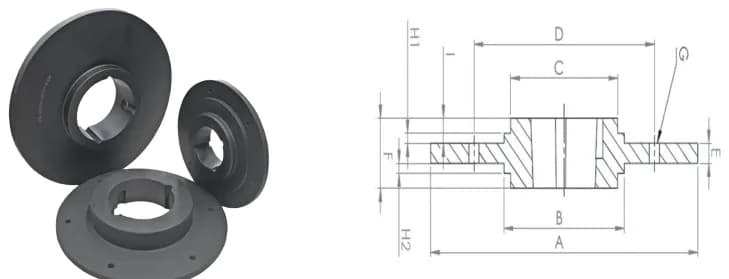

6 products · BF type
| Product Code | Bush code | Amm | Bmm | Cmm | Dmm | Emm | Fmm | Gmm | H1mm | H2mm | Imm | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BF 12/120 | 1210 | 120 | 80 | 75 | 100 | 5,5 | 25 | 6x7,5 | 2,5 | 2,5 | 10 | |
| BF 16/130 | 1610 | 130 | 90 | 85 | 110 | 6,5 | 25 | 6x8,2 | 2,5 | 2,5 | 10 | |
| BF 20/145 | 2012 | 145 | 100 | 95 | 125 | 8,5 | 32 | 6x9,2 | 2,5 | 2,5 | 13 | |
| BF 16/150 | 1610 | 150 | 112 | 85 | 128 | 6,5 | 25 | 6x7 | 2,5 | 2,5 | 9,25 | |
| BF 25/185 | 2517 | 185 | - | 119 | 155 | 11,5 | 45 | 8x12,2 | - | - | 20 | |
| BF 30/200 | 3020 | 200 | 165 | 147 | 190 | 11,5 | 51 | 8x13,5 | 2,5 | 2,5 | 20 |
Dimensions are taken from the KYS 2025 product catalogue (p. 171). Current values are confirmed with your quote.
