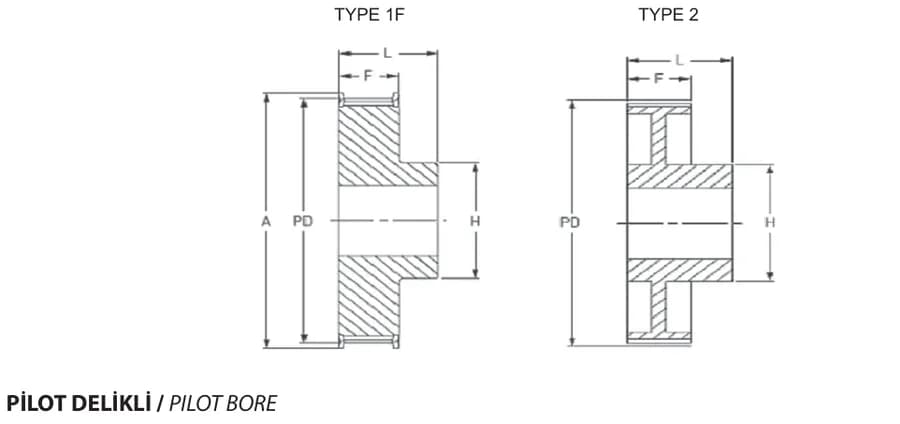

19 products · 5M15 · Pilot bore
| Product Code | Number of teeth | P.Dmm | Amm | Type | Min. boremm | Max. boremm | Hmm | Fmm | Lmm | Add |
|---|---|---|---|---|---|---|---|---|---|---|
| 5M15-12 | 12 | 19,1 | 25 | 1F | 4 | 7 | 13 | 20,5 | 26 | |
| 5M15-14 | 14 | 22,28 | 25 | 1F | 6 | 8 | 14 | 20,5 | 26 | |
| 5M15-15 | 15 | 23,87 | 28 | 1F | 6 | 10 | 16 | 20,5 | 26 | |
| 5M15-16 | 16 | 25,46 | 28 | 1F | 6 | 10 | 16,5 | 20,5 | 26 | |
| 5M15-18 | 18 | 28,65 | 32 | 1F | 6 | 12 | 20 | 20,5 | 26 | |
| 5M15-20 | 20 | 31,83 | 36 | 1F | 6 | 14 | 23 | 20,5 | 26 | |
| 5M15-21 | 21 | 33,42 | 38 | 1F | 6 | 14 | 24 | 20,5 | 26 | |
| 5M15-22 | 22 | 35,01 | 38 | 1F | 6 | 14 | 25,5 | 20,5 | 26 | |
| 5M15-24 | 24 | 38,2 | 42 | 1F | 6 | 16 | 27 | 20,5 | 28 | |
| 5M15-26 | 26 | 41,38 | 44 | 1F | 6 | 18 | 30 | 20,5 | 28 | |
| 5M15-28 | 28 | 44,56 | 48 | 1F | 6 | 18 | 30,5 | 20,5 | 28 | |
| 5M15-30 | 30 | 47,75 | 51 | 1F | 6 | 20 | 35 | 20,5 | 28 | |
| 5M15-32 | 32 | 50,93 | 54 | 1F | 8 | 22 | 38 | 20,5 | 28 | |
| 5M15-36 | 36 | 57,3 | 60 | 1F | 8 | 22 | 38 | 20,5 | 28 | |
| 5M15-40 | 40 | 63,66 | 71 | 1F | 8 | 22 | 38 | 20,5 | 28 | |
| 5M15-44 | 44 | 70,03 | - | 2 | 8 | 22 | 38 | 20,5 | 30 | |
| 5M15-48 | 48 | 76,39 | - | 2 | 8 | 25 | 38 | 20,5 | 30 | |
| 5M15-60 | 60 | 95,49 | - | 2 | 8 | 25 | 50 | 20,5 | 30 | |
| 5M15-72 | 72 | 114,59 | - | 2 | 8 | 25 | 50 | 20,5 | 30 |
Dimensions are taken from the KYS 2025 product catalogue (p. 102). Current values are confirmed with your quote.
