Timing Belt Pulleys

TIMING PULLEY

Product Group 04

Timing Belt Pulleys

Precise tooth profiles for slip-free, synchronous motion transfer.

Belt profile3M 5M 8M 14M L H XH T2,5-AT2,5 T5-AT5 T10-AT10

Choose a Size and Request a Quote Catalogue

5M09 · Pilot bore 5M15 · Pilot bore 5M25 · Pilot bore 5M15 · Taper bore

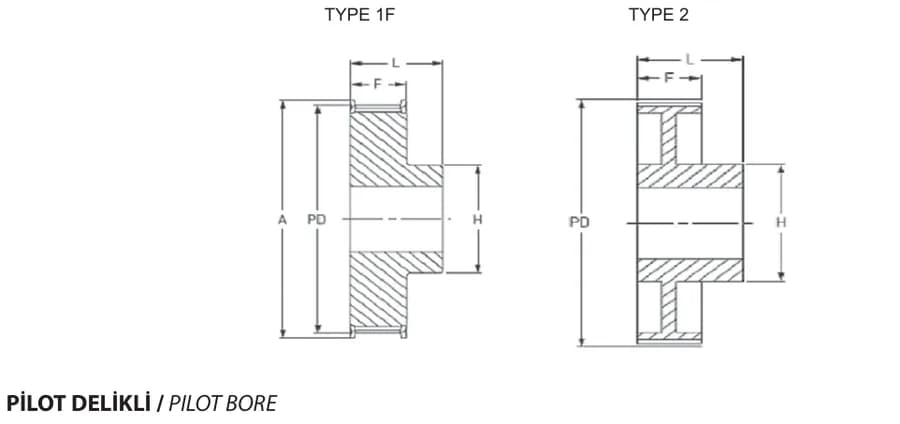

5M25 · Pilot bore technical drawing

20 products · 5M25 · Pilot bore

Product Code	Number of teeth	P.Dmm	Amm	Type	Min. boremm	Max. boremm	Hmm	Fmm	Lmm	Add
5M25-12	12	19,1	25	1F	4	7	13	30	36
5M25-14	14	22,28	25	1F	6	8	13	30	36
5M25-15	15	23,87	28	1F	6	10	16	30	36
5M25-16	16	25,46	28	1F	6	10	16	30	36
5M25-18	18	28,65	32	1F	6	12	19	30	36
5M25-20	20	31,83	36	1F	6	14	23	30	36
5M25-21	21	33,42	38	1F	6	14	24	30	38
5M25-22	22	35,01	38	1F	6	14	25,5	30	38
5M25-24	24	38,2	42	1F	6	16	27	30	38
5M25-26	26	41,38	44	1F	6	18	30	30	38
5M25-28	28	44,56	48	1F	6	18	30,5	30	38
5M25-30	30	47,75	51	1F	6	20	35	30	38
5M25-32	32	50,93	54	1F	8	22	38	30	38
5M25-36	36	57,3	60	1F	8	22	38	30	38
5M25-40	40	63,66	71	1F	8	22	38	30	38
5M25-44	44	70,03	-	2	8	22	38	30	40
5M25-48	48	76,39	-	2	8	25	38	30	40
5M25-60	60	95,49	-	2	8	25	50	30	40
5M25-72	72	114,59	-	2	8	25	50	30	40
5M25-80	80	127,32	-	2	8	25	92	30	40

Dimensions are taken from the KYS 2025 product catalogue (p. 103). Current values are confirmed with your quote.
