Triger Kasnaklar

Kaymasız, senkron hareket iletimi için hassas diş profili.

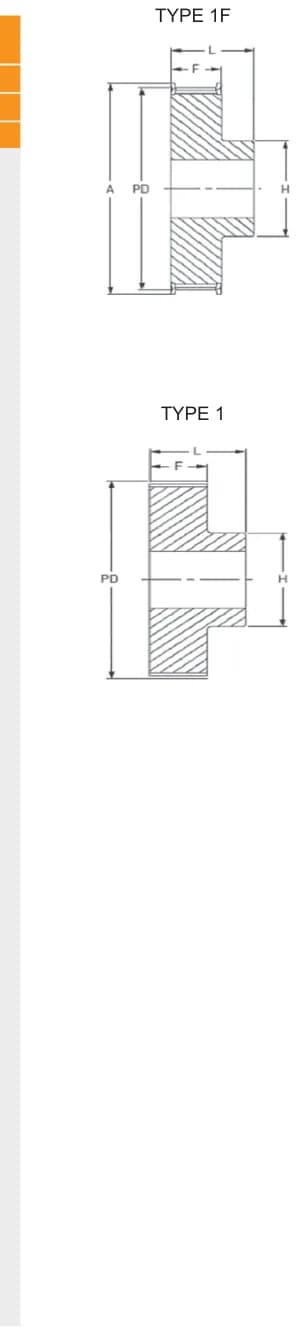

24 ürün · T10-AT10 · 32 mm · Pilot delikli

Ürün Kodu	Diş sayısı	P.Dmm	Amm	Tip	Delik min.mm	Delik max.mm	Hmm	Fmm	Lmm
T10-AT10/32-18	18	57,29	60	1F	10	26	40	37	47
T10-AT10/32-19	19	60,48	66	1F	10	28	44	37	47
T10-AT10/32-20	20	63,66	66	1F	12	30	46	37	47
T10-AT10/32-21	21	66,85	71	1F	12	36	48	37	47
T10-AT10/32-22	22	70,03	75	1F	12	34	52	37	47
T10-AT10/32-23	23	73,21	77	1F	12	36	55	37	47
T10-AT10/32-24	24	76,39	83	1F	12	38	58	37	47
T10-AT10/32-25	25	79,58	83	1F	12	39	60	37	47
T10-AT10/32-26	26	82,76	87	1F	12	39	60	37	47
T10-AT10/32-27	27	85,95	91	1F	12	39	60	37	47
T10-AT10/32-28	28	89,25	93	1F	12	39	60	37	47
T10-AT10/32-30	30	95,49	99	1F	12	39	60	37	47
T10-AT10/32-32	32	101,86	106	1F	12	42	65	37	47
T10-AT10/32-35	35	111,41	115	1F	16	45	70	37	47
T10-AT10/32-36	36	114,59	119	1F	16	45	70	37	47
T10-AT10/32-38	38	120,96	125	1F	16	48	75	37	47
T10-AT10/32-40	40	127,32	131	1F	16	52	80	37	47
T10-AT10/32-42	42	133,69	-	1	16	52	80	37	47
T10-AT10/32-44	44	140,06	-	1	16	57	88	37	47
T10-AT10/32-45	45	143,24	-	1	16	57	90	37	47
T10-AT10/32-48	48	152,78	-	1	16	62	95	37	47
T10-AT10/32-54	54	171,89	-	1	16	66	100	37	47
T10-AT10/32-57	57	181,44	-	1	16	66	110	37	47
T10-AT10/32-60	60	190,98	-	1	16	72	110	37	47
