TAPER BUSH PULLEYProduct Group 02
V-Belt Pulleys
V-groove pulleys fitted with taper bushes, cast in our own foundry and precision machined. Alongside the standard profiles, we produce custom sizes to your technical drawing.
- Fast and precise mounting with a taper bush
- SPZ, SPA, SPB and SPC groove profiles
- Cast in our own foundry, machined on our own machine park
- Phosphate-coated or painted finish
- Custom sizes to your technical drawing on request
33 products · SPA · 2 grooves

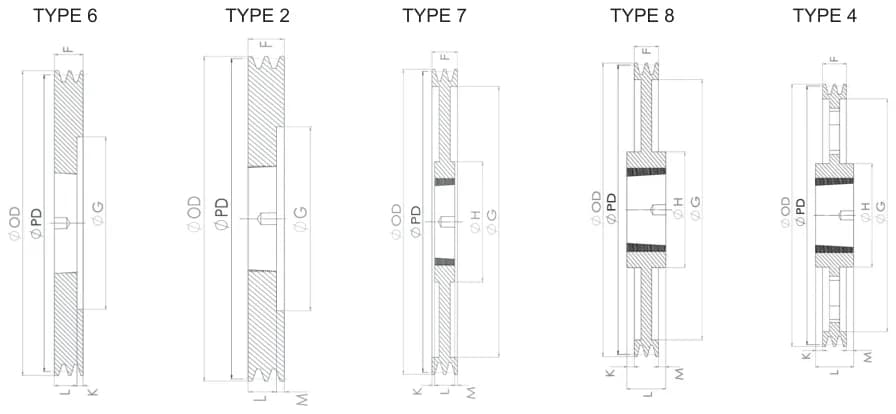

| Product Code | Profile | Grooves | Pitch diameter (PD)mm | Outside diameter (OD)mm | Pulley type | Bush no. | Fmm | Gmm | Kmm | Lmm | Mmm | Hmm | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPA 63-2 | SPA | 2 | 63 | 68,5 | 6 | 1108 | 35 | 33 | 13 | 22 | - | - | |
| SPA 67-2 | SPA | 2 | 67 | 72,5 | 6 | 1108 | 35 | 37 | 13 | 22 | - | - | |
| SPA 71-2 | SPA | 2 | 71 | 76,5 | 6 | 1108 | 35 | 40 | 13 | 22 | - | - | |
| SPA 75-2 | SPA | 2 | 75 | 80,5 | 6 | 1108 | 35 | 44 | 13 | 22 | - | - | |
| SPA 80-2 | SPA | 2 | 80 | 85,5 | 6 | 1210 | 35 | 47 | 10 | 25 | - | - | |
| SPA 85-2 | SPA | 2 | 85 | 90,5 | 6 | 1210 | 35 | 50 | 10 | 25 | - | - | |
| SPA 90-2 | SPA | 2 | 90 | 95,5 | 6 | 1610 | 35 | 60 | 10 | 25 | - | - | |
| SPA 95-2 | SPA | 2 | 95 | 100,5 | 6 | 1610 | 35 | 64 | 10 | 25 | - | - | |
| SPA 100-2 | SPA | 2 | 100 | 105,5 | 6 | 1610 | 35 | 70 | 10 | 25 | - | - | |
| SPA 106-2 | SPA | 2 | 106 | 111,5 | 6 | 1610 | 35 | 76 | 10 | 25 | - | - | |
| SPA 112-2 | SPA | 2 | 112 | 117,5 | 6 | 1610 | 35 | 80 | 10 | 25 | - | - | |
| SPA 118-2 | SPA | 2 | 118 | 123,5 | 6 | 1610 | 35 | 86 | 10 | 25 | - | - | |
| SPA 125-2 | SPA | 2 | 125 | 130,5 | 2 | 1610 | 35 | 90 | - | 25 | 10 | - | |
| SPA 132-2 | SPA | 2 | 132 | 137,5 | 6 | 2012 | 35 | 98 | 3 | 32 | - | - | |
| SPA 140-2 | SPA | 2 | 140 | 145,5 | 6 | 2012 | 35 | 106 | 3 | 32 | - | - | |
| SPA 150-2 | SPA | 2 | 150 | 155,5 | 6 | 2012 | 35 | 116 | 3 | 32 | - | - | |
| SPA 160-2 | SPA | 2 | 160 | 165,5 | 6 | 2012 | 35 | 125 | 3 | 32 | - | - | |
| SPA 170-2 | SPA | 2 | 170 | 175,5 | 6 | 2012 | 35 | 135 | 3 | 32 | - | - | |
| SPA 180-2 | SPA | 2 | 180 | 185,5 | 7 | 2012 | 35 | 148 | 1,5 | 32 | 1,5 | 112 | |
| SPA 190-2 | SPA | 2 | 190 | 195,5 | 7 | 2012 | 35 | 158 | 1,5 | 32 | 1,5 | 112 | |
| SPA 200-2 | SPA | 2 | 200 | 205,5 | 8 | 2517 | 35 | 165 | 5 | 45 | 5 | 120 | |
| SPA 212-2 | SPA | 2 | 212 | 217,5 | 8 | 2517 | 35 | 177 | 5 | 45 | 5 | 120 | |
| SPA 224-2 | SPA | 2 | 224 | 229,5 | 8 | 2517 | 35 | 189 | 5 | 45 | 5 | 120 | |
| SPA 236-2 | SPA | 2 | 236 | 241,5 | 8 | 2517 | 35 | 200 | 5 | 45 | 5 | 120 | |
| SPA 250-2 | SPA | 2 | 250 | 255,5 | 4 | 2517 | 35 | 215 | 5 | 45 | 5 | 120 | |
| SPA 280-2 | SPA | 2 | 280 | 285,5 | 4 | 2517 | 35 | 245 | 5 | 45 | 5 | 120 | |
| SPA 315-2 | SPA | 2 | 315 | 320,5 | 4 | 2517 | 35 | 280 | 5 | 45 | 5 | 120 | |
| SPA 355-2 | SPA | 2 | 355 | 360,5 | 4 | 2517 | 35 | 320 | 5 | 45 | 5 | 120 | |
| SPA 400-2 | SPA | 2 | 400 | 405,5 | 4 | 2517 | 35 | 365 | 5 | 45 | 5 | 120 | |
| SPA 450-2 | SPA | 2 | 450 | 455,5 | 4 | 2517 | 35 | 415 | 5 | 45 | 5 | 120 | |
| SPA 500-2 | SPA | 2 | 500 | 505,5 | 4 | 2517 | 35 | 465 | 5 | 45 | 5 | 120 | |
| SPA 560-2 | SPA | 2 | 560 | 565,5 | 4 | 3020 | 35 | 525 | 8 | 51 | 8 | 150 | |
| SPA 630-2 | SPA | 2 | 630 | 635,5 | 4 | 3020 | 35 | 595 | 8 | 51 | 8 | 150 |
Dimensions are taken from the KYS 2025 product catalogue (p. 52). Current values are confirmed with your quote.
