TAPER BUSH PULLEYProduct Group 02
V-Belt Pulleys
V-groove pulleys fitted with taper bushes, cast in our own foundry and precision machined. Alongside the standard profiles, we produce custom sizes to your technical drawing.
- Fast and precise mounting with a taper bush
- SPZ, SPA, SPB and SPC groove profiles
- Cast in our own foundry, machined on our own machine park
- Phosphate-coated or painted finish
- Custom sizes to your technical drawing on request
27 products · SPA · 6 grooves

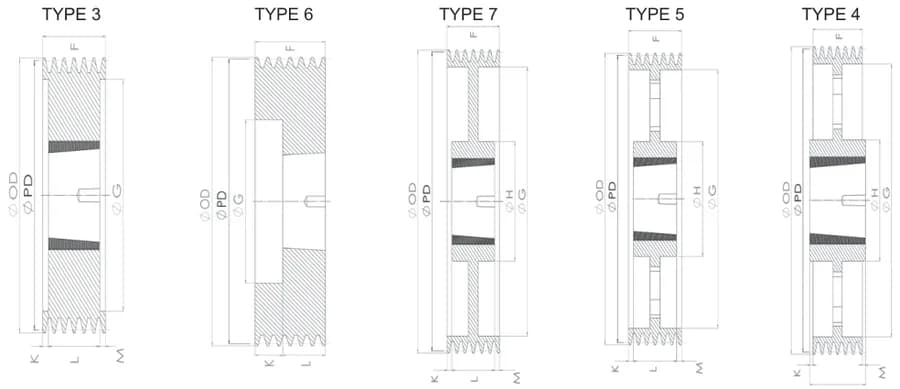

| Product Code | Profile | Grooves | Pitch diameter (PD)mm | Outside diameter (OD)mm | Pulley type | Bush no. | Fmm | Gmm | Kmm | Lmm | Mmm | Hmm | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPA 100-6 | SPA | 6 | 100 | 105,5 | 3 | 1610 | 95 | 70 | 35 | 25 | 35 | - | |
| SPA 106-6 | SPA | 6 | 106 | 111,5 | 6 | 2012 | 95 | 76 | 63 | 32 | - | - | |
| SPA 112-6 | SPA | 6 | 112 | 117,5 | 6 | 2012 | 95 | 80 | 63 | 32 | - | - | |
| SPA 118-6 | SPA | 6 | 118 | 123,5 | 6 | 2012 | 95 | 86 | 63 | 32 | - | - | |
| SPA 125-6 | SPA | 6 | 125 | 130,5 | 3 | 2012 | 95 | 90 | 31,5 | 32 | 31,5 | - | |
| SPA 132-6 | SPA | 6 | 132 | 137,5 | 3 | 2517 | 95 | 98 | 25 | 45 | 25 | - | |
| SPA 140-6 | SPA | 6 | 140 | 145,5 | 3 | 2517 | 95 | 106 | 25 | 45 | 25 | - | |
| SPA 150-6 | SPA | 6 | 150 | 155,5 | 3 | 2517 | 95 | 116 | 25 | 45 | 25 | - | |
| SPA 160-6 | SPA | 6 | 160 | 165,5 | 3 | 2517 | 95 | 125 | 25 | 45 | 25 | - | |
| SPA 170-6 | SPA | 6 | 170 | 175,5 | 3 | 2517 | 95 | 135 | 25 | 45 | 25 | - | |
| SPA 180-6 | SPA | 6 | 180 | 185,5 | 3 | 2517 | 95 | 148 | 25 | 45 | 25 | - | |
| SPA 190-6 | SPA | 6 | 190 | 195,5 | 3 | 2517 | 95 | 158 | 25 | 45 | 25 | - | |
| SPA 200-6 | SPA | 6 | 200 | 205,5 | 3 | 3020 | 95 | 165 | 22 | 51 | 22 | - | |
| SPA 212-6 | SPA | 6 | 212 | 217,5 | 3 | 3020 | 95 | 177 | 22 | 51 | 22 | - | |
| SPA 224-6 | SPA | 6 | 224 | 229,5 | 3 | 3020 | 95 | 189 | 22 | 51 | 22 | - | |
| SPA 236-6 | SPA | 6 | 236 | 241,5 | 3 | 3020 | 95 | 200 | 22 | 51 | 22 | - | |
| SPA 250-6 | SPA | 6 | 250 | 255,5 | 7 | 3020 | 95 | 215 | 22 | 51 | 22 | 150 | |
| SPA 280-6 | SPA | 6 | 280 | 285,5 | 5 | 3535 | 95 | 245 | 3 | 89 | 3 | 170 | |
| SPA 315-6 | SPA | 6 | 315 | 320,5 | 5 | 3535 | 95 | 280 | 3 | 89 | 3 | 170 | |
| SPA 355-6 | SPA | 6 | 355 | 360,5 | 5 | 3535 | 95 | 320 | 3 | 89 | 3 | 170 | |
| SPA 400-6 | SPA | 6 | 400 | 405,5 | 5 | 3535 | 95 | 365 | 3 | 89 | 3 | 170 | |
| SPA 450-6 | SPA | 6 | 450 | 455,5 | 5 | 3535 | 95 | 415 | 3 | 89 | 3 | 170 | |
| SPA 500-6 | SPA | 6 | 500 | 505,5 | 5 | 3535 | 95 | 465 | 3 | 89 | 3 | 170 | |
| SPA 560-6 | SPA | 6 | 560 | 565,5 | 5 | 3535 | 95 | 525 | 3 | 89 | 3 | 170 | |
| SPA 630-6 | SPA | 6 | 630 | 635,5 | 4 | 4040 | 95 | 595 | 3,5 | 102 | 3,5 | 210 | |
| SPA 800-6 | SPA | 6 | 800 | 805,5 | 4 | 4040 | 95 | 765 | 3,5 | 102 | 3,5 | 210 | |
| SPA 1000-6 | SPA | 6 | 1000 | 1005,5 | 4 | 4545 | 95 | 965 | 9,5 | 114 | 9,5 | 240 |
Dimensions are taken from the KYS 2025 product catalogue (p. 56). Current values are confirmed with your quote.
