TAPER BUSH PULLEYProduct Group 02
V-Belt Pulleys
V-groove pulleys fitted with taper bushes, cast in our own foundry and precision machined. Alongside the standard profiles, we produce custom sizes to your technical drawing.
- Fast and precise mounting with a taper bush
- SPZ, SPA, SPB and SPC groove profiles
- Cast in our own foundry, machined on our own machine park
- Phosphate-coated or painted finish
- Custom sizes to your technical drawing on request
7 products · SPC · 2 grooves

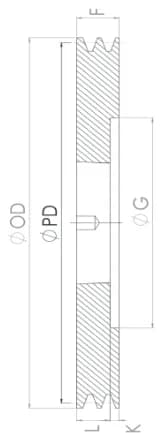

| Product Code | Profile | Grooves | Pitch diameter (PD)mm | Outside diameter (OD)mm | Pulley type | Bush no. | Fmm | Gmm | Kmm | Lmm | Mmm | Hmm | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPC 140-2 | SPC | 2 | 140 | 149,6 | 6 | 2012 | 59,5 | 84 | 27,5 | 32 | - | - | |
| SPC 150-2 | SPC | 2 | 150 | 159,6 | 6 | 2012 | 59,5 | 94 | 27,5 | 32 | - | - | |
| SPC 160-2 | SPC | 2 | 160 | 169,6 | 6 | 2517 | 59,5 | 104 | 14,5 | 45 | - | - | |
| SPC 170-2 | SPC | 2 | 170 | 179,6 | 6 | 2517 | 59,5 | 114 | 14,5 | 45 | - | - | |
| SPC 180-2 | SPC | 2 | 180 | 189,6 | 6 | 2517 | 59,5 | 124 | 14,5 | 45 | - | - | |
| SPC 190-2 | SPC | 2 | 190 | 199,6 | 6 | 2517 | 59,5 | 134 | 14,5 | 45 | - | - | |
| SPC 200-2 | SPC | 2 | 200 | 209,6 | 6 | 2517 | 59,5 | 144 | 14,5 | 45 | - | - |
Dimensions are taken from the KYS 2025 product catalogue (p. 65). Current values are confirmed with your quote.
