TAPER BUSH PULLEYProduct Group 02
V-Belt Pulleys
V-groove pulleys fitted with taper bushes, cast in our own foundry and precision machined. Alongside the standard profiles, we produce custom sizes to your technical drawing.
- Fast and precise mounting with a taper bush
- SPZ, SPA, SPB and SPC groove profiles
- Cast in our own foundry, machined on our own machine park
- Phosphate-coated or painted finish
- Custom sizes to your technical drawing on request

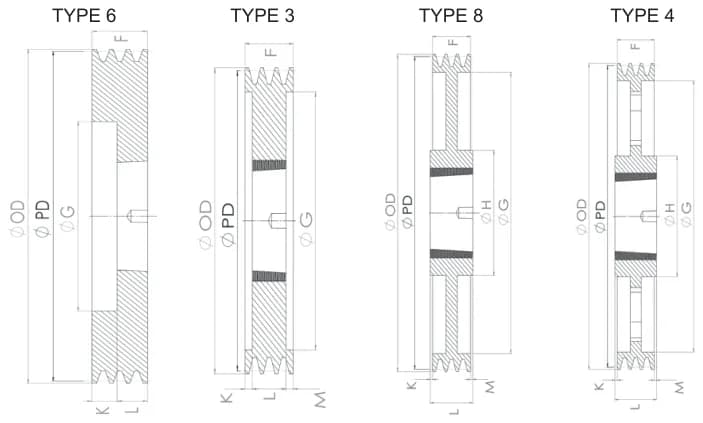

30 products · SPC · 3 grooves
| Product Code | Profile | Grooves | Pitch diameter (PD)mm | Outside diameter (OD)mm | Pulley type | Bush no. | Fmm | Gmm | Kmm | Lmm | Mmm | Hmm | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPC 140-3 | SPC | 3 | 140 | 149,6 | 6 | 2012 | 85 | 84 | 53 | 32 | - | - | |
| SPC 150-3 | SPC | 3 | 150 | 159,6 | 3 | 2517 | 85 | 94 | 20 | 45 | 20 | - | |
| SPC 160-3 | SPC | 3 | 160 | 169,6 | 3 | 2517 | 85 | 104 | 20 | 45 | 20 | - | |
| SPC 170-3 | SPC | 3 | 170 | 179,6 | 3 | 2517 | 85 | 114 | 20 | 45 | 20 | - | |
| SPC 180-3 | SPC | 3 | 180 | 189,6 | 3 | 2517 | 85 | 124 | 20 | 45 | 20 | - | |
| SPC 190-3 | SPC | 3 | 190 | 199,6 | 3 | 2517 | 85 | 134 | 20 | 45 | 20 | - | |
| SPC 200-3 | SPC | 3 | 200 | 209,6 | 3 | 2517 | 85 | 144 | 20 | 45 | 20 | - | |
| SPC 212-3 | SPC | 3 | 212 | 221,6 | 3 | 3020 | 85 | 156 | 17 | 51 | 17 | - | |
| SPC 224-3 | SPC | 3 | 224 | 233,6 | 3 | 3020 | 85 | 168 | 17 | 51 | 17 | - | |
| SPC 236-3 | SPC | 3 | 236 | 245,6 | 3 | 3020 | 85 | 180 | 17 | 51 | 17 | - | |
| SPC 250-3 | SPC | 3 | 250 | 259,6 | 3 | 3020 | 85 | 194 | 17 | 51 | 17 | - | |
| SPC 265-3 | SPC | 3 | 265 | 274,6 | 8 | 3535 | 85 | 209 | 2 | 89 | 2 | 170 | |
| SPC 280-3 | SPC | 3 | 280 | 289,6 | 8 | 3535 | 85 | 224 | 2 | 89 | 2 | 170 | |
| SPC 300-3 | SPC | 3 | 300 | 309,6 | 8 | 3535 | 85 | 244 | 2 | 89 | 2 | 170 | |
| SPC 315-3 | SPC | 3 | 315 | 324,6 | 8 | 3535 | 85 | 259 | 2 | 89 | 2 | 170 | |
| SPC 335-3 | SPC | 3 | 335 | 344,6 | 8 | 3535 | 85 | 279 | 2 | 89 | 2 | 170 | |
| SPC 355-3 | SPC | 3 | 355 | 364,6 | 8 | 3535 | 85 | 299 | 2 | 89 | 2 | 170 | |
| SPC 375-3 | SPC | 3 | 375 | 384,6 | 8 | 3535 | 85 | 319 | 2 | 89 | 2 | 170 | |
| SPC 400-3 | SPC | 3 | 400 | 409,6 | 4 | 3535 | 85 | 344 | 2 | 89 | 2 | 170 | |
| SPC 425-3 | SPC | 3 | 425 | 434,6 | 4 | 3535 | 85 | 369 | 2 | 89 | 2 | 170 | |
| SPC 450-3 | SPC | 3 | 450 | 459,6 | 4 | 3535 | 85 | 394 | 2 | 89 | 2 | 170 | |
| SPC 475-3 | SPC | 3 | 475 | 484,6 | 4 | 3535 | 85 | 419 | 2 | 89 | 2 | 170 | |
| SPC 500-3 | SPC | 3 | 500 | 509,6 | 4 | 3535 | 85 | 444 | 2 | 89 | 2 | 170 | |
| SPC 530-3 | SPC | 3 | 530 | 539,6 | 4 | 3535 | 85 | 474 | 2 | 89 | 2 | 170 | |
| SPC 560-3 | SPC | 3 | 560 | 569,6 | 4 | 3535 | 85 | 504 | 2 | 89 | 2 | 170 | |
| SPC 630-3 | SPC | 3 | 630 | 639,6 | 4 | 4040 | 85 | 574 | 8,5 | 102 | 8,5 | 210 | |
| SPC 710-3 | SPC | 3 | 710 | 719,6 | 4 | 4040 | 85 | 654 | 8,5 | 102 | 8,5 | 210 | |
| SPC 800-3 | SPC | 3 | 800 | 809,6 | 4 | 4545 | 85 | 744 | 14,5 | 114 | 14,5 | 240 | |
| SPC 1000-3 | SPC | 3 | 1000 | 1009,6 | 4 | 5050 | 85 | 944 | 21 | 127 | 21 | 265 | |
| SPC 1250-3 | SPC | 3 | 1250 | 1259,6 | 4 | 5050 | 85 | 1194 | 21 | 127 | 21 | 265 |
Dimensions are taken from the KYS 2025 product catalogue (p. 66). Current values are confirmed with your quote.
