TAPER BUSH PULLEYProduct Group 02
V-Belt Pulleys
V-groove pulleys fitted with taper bushes, cast in our own foundry and precision machined. Alongside the standard profiles, we produce custom sizes to your technical drawing.
- Fast and precise mounting with a taper bush
- SPZ, SPA, SPB and SPC groove profiles
- Cast in our own foundry, machined on our own machine park
- Phosphate-coated or painted finish
- Custom sizes to your technical drawing on request
24 products · SPC · 8 grooves

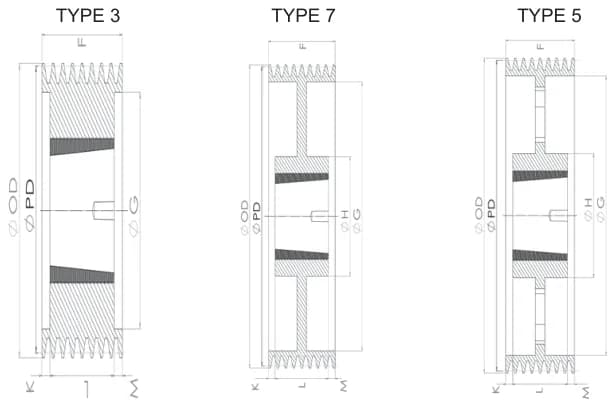

| Product Code | Profile | Grooves | Pitch diameter (PD)mm | Outside diameter (OD)mm | Pulley type | Bush no. | Fmm | Gmm | Kmm | Lmm | Mmm | Hmm | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPC 200-8 | SPC | 8 | 200 | 209,6 | 3 | 3535 | 213 | 144 | 62 | 89 | 62 | - | |
| SPC 212-8 | SPC | 8 | 212 | 221,6 | 3 | 3535 | 213 | 156 | 62 | 89 | 62 | - | |
| SPC 224-8 | SPC | 8 | 224 | 233,6 | 3 | 3535 | 213 | 168 | 62 | 89 | 62 | - | |
| SPC 236-8 | SPC | 8 | 236 | 245,6 | 3 | 3535 | 213 | 180 | 62 | 89 | 62 | - | |
| SPC 250-8 | SPC | 8 | 250 | 259,6 | 3 | 3535 | 213 | 194 | 62 | 89 | 62 | - | |
| SPC 265-8 | SPC | 8 | 265 | 274,6 | 3 | 3535 | 213 | 209 | 62 | 89 | 62 | - | |
| SPC 280-8 | SPC | 8 | 280 | 289,6 | 3 | 3535 | 213 | 224 | 62 | 89 | 62 | - | |
| SPC 300-8 | SPC | 8 | 300 | 309,6 | 3 | 4040 | 213 | 244 | 55,5 | 102 | 55,5 | - | |
| SPC 315-8 | SPC | 8 | 315 | 324,6 | 3 | 4040 | 213 | 259 | 55,5 | 102 | 55,5 | - | |
| SPC 335-8 | SPC | 8 | 335 | 344,6 | 7 | 4040 | 213 | 279 | 55,5 | 102 | 55,5 | 210 | |
| SPC 355-8 | SPC | 8 | 355 | 364,6 | 7 | 4040 | 213 | 299 | 55,5 | 102 | 55,5 | 210 | |
| SPC 375-8 | SPC | 8 | 375 | 384,6 | 7 | 4545 | 213 | 319 | 49,5 | 114 | 49,5 | 240 | |
| SPC 400-8 | SPC | 8 | 400 | 409,6 | 7 | 4545 | 213 | 344 | 49,5 | 114 | 49,5 | 240 | |
| SPC 425-8 | SPC | 8 | 425 | 434,6 | 7 | 4545 | 213 | 369 | 49,5 | 114 | 49,5 | 240 | |
| SPC 450-8 | SPC | 8 | 450 | 459,6 | 7 | 5050 | 213 | 394 | 43 | 127 | 43 | 265 | |
| SPC 475-8 | SPC | 8 | 475 | 484,6 | 7 | 5050 | 213 | 419 | 43 | 127 | 43 | 265 | |
| SPC 500-8 | SPC | 8 | 500 | 509,6 | 7 | 5050 | 213 | 444 | 43 | 127 | 43 | 265 | |
| SPC 530-8 | SPC | 8 | 530 | 539,6 | 7 | 5050 | 213 | 474 | 43 | 127 | 43 | 265 | |
| SPC 560-8 | SPC | 8 | 560 | 569,6 | 5 | 5050 | 213 | 504 | 43 | 127 | 43 | 265 | |
| SPC 630-8 | SPC | 8 | 630 | 639,6 | 5 | 5050 | 213 | 574 | 43 | 127 | 43 | 265 | |
| SPC 710-8 | SPC | 8 | 710 | 719,6 | 5 | 5050 | 213 | 654 | 43 | 127 | 43 | 265 | |
| SPC 800-8 | SPC | 8 | 800 | 809,6 | 5 | 5050 | 213 | 744 | 43 | 127 | 43 | 265 | |
| SPC 1000-8 | SPC | 8 | 1000 | 1009,6 | 5 | 5050 | 213 | 944 | 43 | 127 | 43 | 265 | |
| SPC 1250-8 | SPC | 8 | 1250 | 1259,6 | 5 | 5050 | 213 | 1194 | 43 | 127 | 43 | 265 |
Dimensions are taken from the KYS 2025 product catalogue (p. 70). Current values are confirmed with your quote.
