V-Belt Pulleys

V-groove pulleys fitted with taper bushes, cast in our own foundry and precision machined. Alongside the standard profiles, we produce custom sizes to your technical drawing.

Fast and precise mounting with a taper bush
SPZ, SPA, SPB and SPC groove profiles
Cast in our own foundry, machined on our own machine park
Phosphate-coated or painted finish
Custom sizes to your technical drawing on request

ProfilesSPZ SPA SPB SPC

Choose a Size and Request a Quote Catalogue

1 groove 2 grooves 3 grooves 4 grooves 5 grooves 6 grooves 8 grooves

32 products · SPZ · 2 grooves

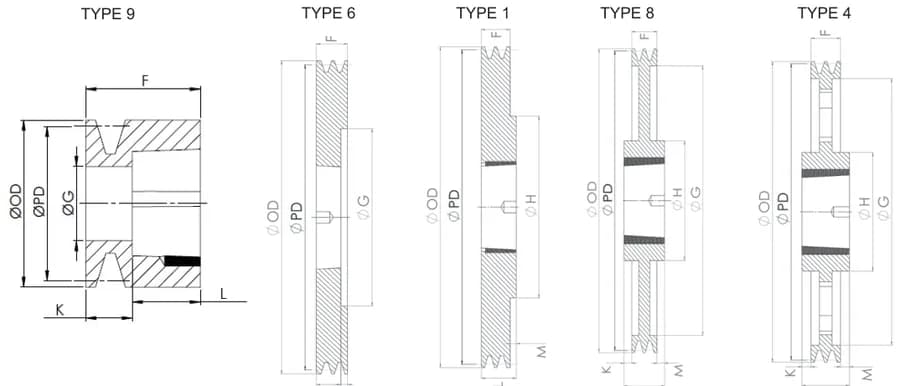

Product Code	Profile	Grooves	Pitch diameter (PD)mm	Outside diameter (OD)mm	Pulley type	Bush no.	Fmm	Gmm	Kmm	Lmm	Mmm	Hmm
SPZ 50-2	SPZ	2	50	54	9	1008	49	28	27	22	-	-
SPZ 56-2	SPZ	2	56	60	9	1008	49	36	27	22	-	-
SPZ 60-2	SPZ	2	60	64	9	1008	49	36	27	22	-	-
SPZ 63-2	SPZ	2	63	67	6	1108	28	40	6	22	-	-
SPZ 67-2	SPZ	2	67	71	6	1108	28	42	6	22	-	-
SPZ 71-2	SPZ	2	71	75	6	1108	28	42	6	22	-	-
SPZ 75-2	SPZ	2	75	79	6	1210	28	51	3	25	-	-
SPZ 80-2	SPZ	2	80	84	6	1210	28	51	3	25	-	-
SPZ 85-2	SPZ	2	85	89	6	1210	28	60	3	25	-	-
SPZ 90-2	SPZ	2	90	94	6	1210	28	60	3	25	-	-
SPZ 95-2	SPZ	2	95	99	6	1210	28	66	3	25	-	-
SPZ 100-2	SPZ	2	100	104	6	1210	28	71	3	25	-	-
SPZ 106-2	SPZ	2	106	110	6	1610	28	76	3	25	-	-
SPZ 112-2	SPZ	2	112	116	6	1610	28	84	3	25	-	-
SPZ 118-2	SPZ	2	118	122	6	1610	28	90	3	25	-	-
SPZ 125-2	SPZ	2	125	129	6	1610	28	97	3	25	-	-
SPZ 132-2	SPZ	2	132	136	6	1610	28	104	3	25	-	-
SPZ 140-2	SPZ	2	140	144	6	1610	28	112	3	25	-	-
SPZ 150-2	SPZ	2	150	154	1	2012	28	-	-	32	4	112
SPZ 160-2	SPZ	2	160	164	1	2012	28	-	-	32	4	112
SPZ 170-2	SPZ	2	170	174	1	2012	28	-	2	32	2	112
SPZ 180-2	SPZ	2	180	184	8	2012	28	152	2	32	2	112
SPZ 190-2	SPZ	2	190	194	8	2012	28	161	2	32	2	112
SPZ 200-2	SPZ	2	200	204	8	2012	28	172	2	32	2	112
SPZ 224-2	SPZ	2	224	228	4	2012	28	196	2	32	2	112
SPZ 250-2	SPZ	2	250	254	4	2012	28	222	2	32	2	112
SPZ 280-2	SPZ	2	280	284	4	2012	28	252	2	32	2	112
SPZ 315-2	SPZ	2	315	319	4	2012	28	287	2	32	2	112
SPZ 355-2	SPZ	2	355	359	4	2012	28	326	2	32	2	112
SPZ 400-2	SPZ	2	400	404	4	2517	28	371	8,5	45	8,5	120
SPZ 450-2	SPZ	2	450	454	4	2517	28	421	8,5	45	8,5	120
SPZ 500-2	SPZ	2	500	504	4	2517	28	471	8,5	45	8,5	120
