TAPER BUSH PULLEYProduct Group 02
V-Belt Pulleys
V-groove pulleys fitted with taper bushes, cast in our own foundry and precision machined. Alongside the standard profiles, we produce custom sizes to your technical drawing.
- Fast and precise mounting with a taper bush
- SPZ, SPA, SPB and SPC groove profiles
- Cast in our own foundry, machined on our own machine park
- Phosphate-coated or painted finish
- Custom sizes to your technical drawing on request

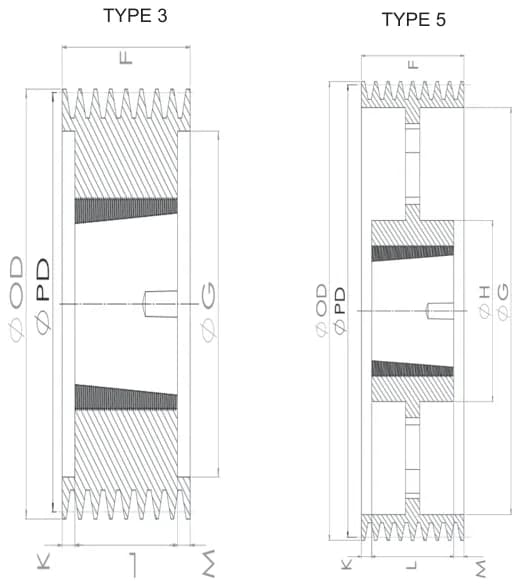

11 products · SPZ · 8 grooves
| Product Code | Profile | Grooves | Pitch diameter (PD)mm | Outside diameter (OD)mm | Pulley type | Bush no. | Fmm | Gmm | Kmm | Lmm | Mmm | Hmm | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPZ 140-8 | SPZ | 8 | 140 | 144 | 3 | 2517 | 100 | 112 | 27,5 | 45 | 27,5 | - | |
| SPZ 150-8 | SPZ | 8 | 150 | 154 | 3 | 2517 | 100 | 122 | 27,5 | 45 | 27,5 | - | |
| SPZ 160-8 | SPZ | 8 | 160 | 164 | 3 | 2517 | 100 | 132 | 27,5 | 45 | 27,5 | - | |
| SPZ 180-8 | SPZ | 8 | 180 | 184 | 3 | 2517 | 100 | 152 | 27,5 | 45 | 27,5 | - | |
| SPZ 200-8 | SPZ | 8 | 200 | 204 | 3 | 3020 | 100 | 172 | 24,5 | 51 | 24,5 | - | |
| SPZ 224-8 | SPZ | 8 | 224 | 228 | 3 | 3020 | 100 | 196 | 24,5 | 51 | 24,5 | - | |
| SPZ 250-8 | SPZ | 8 | 250 | 254 | 5 | 3020 | 100 | 222 | 24,5 | 51 | 24,5 | 150 | |
| SPZ 280-8 | SPZ | 8 | 280 | 284 | 5 | 3020 | 100 | 252 | 24,5 | 51 | 24,5 | 150 | |
| SPZ 355-8 | SPZ | 8 | 355 | 359 | 5 | 3030 | 100 | 326 | 12 | 76 | 12 | 150 | |
| SPZ 400-8 | SPZ | 8 | 400 | 404 | 5 | 3030 | 100 | 371 | 12 | 76 | 12 | 150 | |
| SPZ 450-8 | SPZ | 8 | 450 | 454 | 5 | 3535 | 100 | 421 | 5,5 | 89 | 5,5 | 170 |
Dimensions are taken from the KYS 2025 product catalogue (p. 50). Current values are confirmed with your quote.
