Timing Belt Pulleys

Precise tooth profiles for slip-free, synchronous motion transfer.

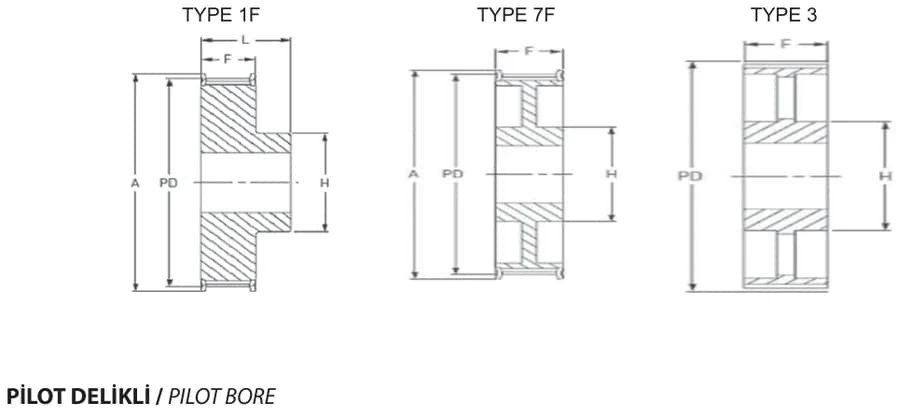

20 products · 14M115 · Pilot bore

Product Code	Number of teeth	P.Dmm	Amm	Type	Min. boremm	Max. boremm	Hmm	Fmm	Lmm
14M115-28	28	124,78	131	1F	32	60	100	133	148
14M115-29	29	129,23	138	1F	32	60	100	133	148
14M115-30	30	133,69	142	1F	32	60	100	133	148
14M115-32	32	142,6	155	1F	32	60	100	133	148
14M115-34	34	151,52	160	1F	32	70	100	133	148
14M115-36	36	160,43	168	1F	32	70	120	133	148
14M115-38	38	169,34	178	1F	32	70	120	133	148
14M115-40	40	178,25	187	1F	32	70	135	133	148
14M115-44	44	196,08	205	1F	32	80	140	133	148
14M115-48	48	213,9	223	1F	32	80	150	133	148
14M115-56	56	249,55	258	1F	32	80	150	133	148
14M115-64	64	285,21	295	7F	32	80	150	133	133
14M115-72	72	320,86	-	3	32	80	150	133	133
14M115-80	80	356,51	-	3	32	80	150	133	133
14M115-90	90	401,07	-	3	32	80	150	133	133
14M115-112	112	499,11	-	3	32	80	150	133	133
14M115-144	144	641,71	-	3	32	90	165	133	133
14M115-168	168	748,66	-	3	32	90	165	133	133
14M115-192	192	855,62	-	3	32	90	165	133	133
14M115-216	216	962,57	-	3	32	90	165	133	133
