V-Belt Pulleys

V-groove pulleys fitted with taper bushes, cast in our own foundry and precision machined. Alongside the standard profiles, we produce custom sizes to your technical drawing.

Fast and precise mounting with a taper bush
SPZ, SPA, SPB and SPC groove profiles
Cast in our own foundry, machined on our own machine park
Phosphate-coated or painted finish
Custom sizes to your technical drawing on request

ProfilesSPZ SPA SPB SPC

Choose a Size and Request a Quote Catalogue

1 groove 2 grooves 3 grooves 4 grooves 5 grooves 6 grooves 8 grooves 10 grooves

21 products · SPB · 10 grooves

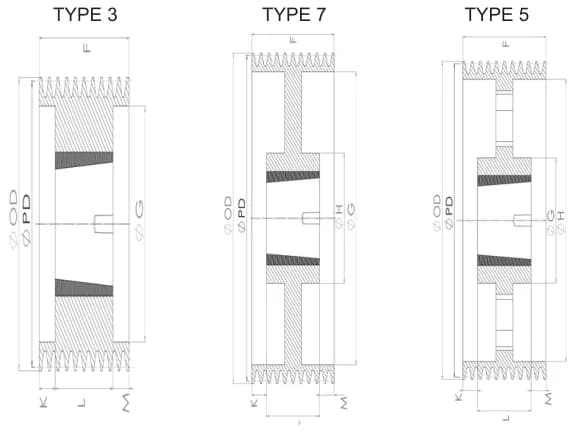

Product Code	Profile	Grooves	Pitch diameter (PD)mm	Outside diameter (OD)mm	Pulley type	Bush no.	Fmm	Gmm	Kmm	Lmm	Mmm	Hmm
SPB 224-10	SPB	10	224	231	3	3535	196	181	53,5	89	53,5	-
SPB 236-10	SPB	10	236	243	3	3535	196	193	53,5	89	53,5	-
SPB 250-10	SPB	10	250	257	3	3535	196	207	53,5	89	53,5	-
SPB 265-10	SPB	10	265	272	7	3535	196	222	53,5	89	53,5	170
SPB 280-10	SPB	10	280	287	7	3535	196	237	53,5	89	53,5	170
SPB 300-10	SPB	10	300	307	7	3535	196	257	53,5	89	53,5	170
SPB 315-10	SPB	10	315	322	7	3535	196	272	53,5	89	53,5	170
SPB 335-10	SPB	10	335	342	5	4040	196	292	47	102	47	210
SPB 355-10	SPB	10	355	362	5	4040	196	312	47	102	47	210
SPB 375-10	SPB	10	375	382	5	4040	196	332	47	102	47	210
SPB 400-10	SPB	10	400	407	5	4040	196	357	47	102	47	210
SPB 425-10	SPB	10	425	432	5	4040	196	382	47	102	47	210
SPB 450-10	SPB	10	450	457	5	4040	196	407	47	102	47	210
SPB 500-10	SPB	10	500	507	5	4545	196	457	41	114	41	240
SPB 560-10	SPB	10	560	567	5	4545	196	517	41	114	41	240
SPB 630-10	SPB	10	630	637	5	4545	196	587	41	114	41	240
SPB 710-10	SPB	10	710	717	5	4545	196	667	41	114	41	240
SPB 800-10	SPB	10	800	807	5	4545	196	757	41	114	41	240
SPB 900-10	SPB	10	900	907	5	5050	196	857	34,5	127	34,5	265
SPB 1000-10	SPB	10	1000	1007	5	5050	196	957	34,5	127	34,5	265
SPB 1250-10	SPB	10	1250	1257	5	5050	196	1207	34,5	127	34,5	265
