TAPER BUSH PULLEYProduct Group 02
V-Belt Pulleys
V-groove pulleys fitted with taper bushes, cast in our own foundry and precision machined. Alongside the standard profiles, we produce custom sizes to your technical drawing.
- Fast and precise mounting with a taper bush
- SPZ, SPA, SPB and SPC groove profiles
- Cast in our own foundry, machined on our own machine park
- Phosphate-coated or painted finish
- Custom sizes to your technical drawing on request

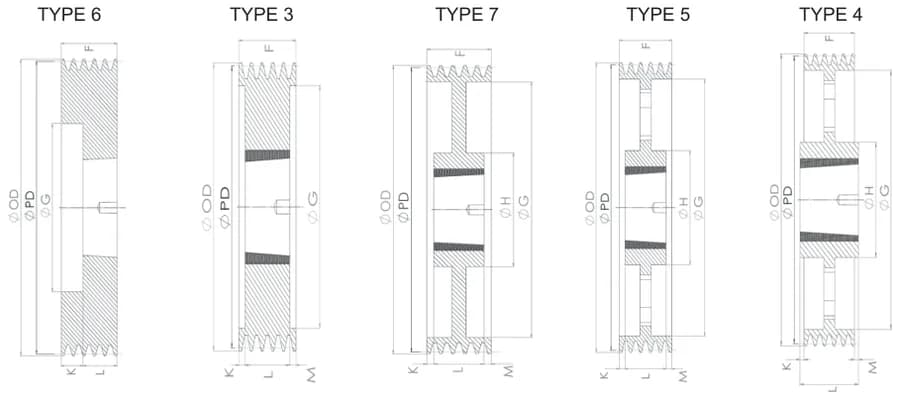

31 products · SPB · 5 grooves
| Product Code | Profile | Grooves | Pitch diameter (PD)mm | Outside diameter (OD)mm | Pulley type | Bush no. | Fmm | Gmm | Kmm | Lmm | Mmm | Hmm | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPB 125-5 | SPB | 5 | 125 | 132 | 6 | 2012 | 101 | 82 | 69 | 32 | - | - | |
| SPB 132-5 | SPB | 5 | 132 | 139 | 3 | 2517 | 101 | 89 | 28 | 45 | 28 | - | |
| SPB 140-5 | SPB | 5 | 140 | 147 | 3 | 2517 | 101 | 97 | 28 | 45 | 28 | - | |
| SPB 150-5 | SPB | 5 | 150 | 157 | 3 | 2517 | 101 | 107 | 28 | 45 | 28 | - | |
| SPB 160-5 | SPB | 5 | 160 | 167 | 3 | 2517 | 101 | 117 | 28 | 45 | 28 | - | |
| SPB 170-5 | SPB | 5 | 170 | 177 | 3 | 3020 | 101 | 127 | 25 | 51 | 25 | - | |
| SPB 180-5 | SPB | 5 | 180 | 187 | 3 | 3020 | 101 | 137 | 25 | 51 | 25 | - | |
| SPB 190-5 | SPB | 5 | 190 | 197 | 3 | 3020 | 101 | 147 | 25 | 51 | 25 | - | |
| SPB 200-5 | SPB | 5 | 200 | 207 | 3 | 3020 | 101 | 157 | 25 | 51 | 25 | - | |
| SPB 212-5 | SPB | 5 | 212 | 219 | 3 | 3020 | 101 | 169 | 25 | 51 | 25 | - | |
| SPB 224-5 | SPB | 5 | 224 | 231 | 3 | 3020 | 101 | 181 | 25 | 51 | 25 | - | |
| SPB 236-5 | SPB | 5 | 236 | 243 | 3 | 3535 | 101 | 193 | 6 | 89 | 6 | - | |
| SPB 250-5 | SPB | 5 | 250 | 257 | 3 | 3535 | 101 | 207 | 6 | 89 | 6 | - | |
| SPB 265-5 | SPB | 5 | 265 | 272 | 7 | 3535 | 101 | 222 | 6 | 89 | 6 | 170 | |
| SPB 280-5 | SPB | 5 | 280 | 287 | 7 | 3535 | 101 | 237 | 6 | 89 | 6 | 170 | |
| SPB 300-5 | SPB | 5 | 300 | 307 | 7 | 3535 | 101 | 257 | 6 | 89 | 6 | 170 | |
| SPB 315-5 | SPB | 5 | 315 | 322 | 7 | 3535 | 101 | 272 | 6 | 89 | 6 | 170 | |
| SPB 335-5 | SPB | 5 | 335 | 342 | 5 | 3535 | 101 | 292 | 6 | 89 | 6 | 170 | |
| SPB 355-5 | SPB | 5 | 355 | 362 | 5 | 3535 | 101 | 312 | 6 | 89 | 6 | 170 | |
| SPB 375-5 | SPB | 5 | 375 | 382 | 5 | 3535 | 101 | 332 | 6 | 89 | 6 | 170 | |
| SPB 400-5 | SPB | 5 | 400 | 407 | 5 | 3535 | 101 | 357 | 6 | 89 | 6 | 170 | |
| SPB 425-5 | SPB | 5 | 425 | 432 | 5 | 3535 | 101 | 382 | 6 | 89 | 6 | 170 | |
| SPB 450-5 | SPB | 5 | 450 | 457 | 5 | 3535 | 101 | 407 | 6 | 89 | 6 | 170 | |
| SPB 500-5 | SPB | 5 | 500 | 507 | 5 | 3535 | 101 | 457 | 6 | 89 | 6 | 170 | |
| SPB 560-5 | SPB | 5 | 560 | 567 | 4 | 4040 | 101 | 517 | 0,5 | 102 | 0,5 | 210 | |
| SPB 630-5 | SPB | 5 | 630 | 637 | 4 | 4040 | 101 | 587 | 0,5 | 102 | 0,5 | 210 | |
| SPB 710-5 | SPB | 5 | 710 | 717 | 4 | 4040 | 101 | 667 | 0,5 | 102 | 0,5 | 210 | |
| SPB 800-5 | SPB | 5 | 800 | 807 | 4 | 4040 | 101 | 757 | 0,5 | 102 | 0,5 | 210 | |
| SPB 900-5 | SPB | 5 | 900 | 907 | 4 | 4040 | 101 | 857 | 0,5 | 102 | 0,5 | 210 | |
| SPB 1000-5 | SPB | 5 | 1000 | 1007 | 4 | 4545 | 101 | 957 | 6,5 | 114 | 6,5 | 240 | |
| SPB 1250-5 | SPB | 5 | 1250 | 1257 | 4 | 4545 | 101 | 1207 | 6,5 | 114 | 6,5 | 240 |
Dimensions are taken from the KYS 2025 product catalogue (p. 61). Current values are confirmed with your quote.
