TAPER BUSH PULLEYProduct Group 02
V-Belt Pulleys
V-groove pulleys fitted with taper bushes, cast in our own foundry and precision machined. Alongside the standard profiles, we produce custom sizes to your technical drawing.
- Fast and precise mounting with a taper bush
- SPZ, SPA, SPB and SPC groove profiles
- Cast in our own foundry, machined on our own machine park
- Phosphate-coated or painted finish
- Custom sizes to your technical drawing on request
35 products · SPB · 3 grooves

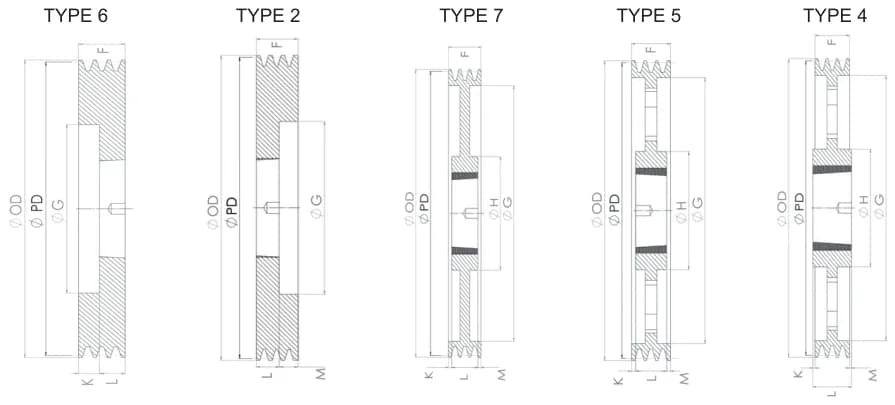

| Product Code | Profile | Grooves | Pitch diameter (PD)mm | Outside diameter (OD)mm | Pulley type | Bush no. | Fmm | Gmm | Kmm | Lmm | Mmm | Hmm | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPB 100-3 | SPB | 3 | 100 | 107 | 6 | 1610 | 63 | 62 | 38 | 25 | - | - | |
| SPB 106-3 | SPB | 3 | 106 | 113 | 6 | 1610 | 63 | 67 | 38 | 25 | - | - | |
| SPB 112-3 | SPB | 3 | 112 | 119 | 6 | 1610 | 63 | 72 | 38 | 25 | - | - | |
| SPB 118-3 | SPB | 3 | 118 | 125 | 6 | 1610 | 63 | 78 | 38 | 25 | - | - | |
| SPB 125-3 | SPB | 3 | 125 | 132 | 6 | 2012 | 63 | 82 | 31 | 32 | - | - | |
| SPB 132-3 | SPB | 3 | 132 | 139 | 2 | 2012 | 63 | 89 | - | 32 | 31 | - | |
| SPB 140-3 | SPB | 3 | 140 | 147 | 2 | 2012 | 63 | 97 | - | 32 | 31 | - | |
| SPB 150-3 | SPB | 3 | 150 | 157 | 2 | 2517 | 63 | 107 | - | 45 | 18 | - | |
| SPB 160-3 | SPB | 3 | 160 | 167 | 2 | 2517 | 63 | 117 | - | 45 | 18 | - | |
| SPB 170-3 | SPB | 3 | 170 | 177 | 2 | 2517 | 63 | 127 | - | 45 | 18 | - | |
| SPB 180-3 | SPB | 3 | 180 | 187 | 2 | 2517 | 63 | 137 | - | 45 | 18 | - | |
| SPB 190-3 | SPB | 3 | 190 | 197 | 2 | 2517 | 63 | 147 | - | 45 | 18 | - | |
| SPB 200-3 | SPB | 3 | 200 | 207 | 2 | 2517 | 63 | 157 | - | 45 | 18 | - | |
| SPB 212-3 | SPB | 3 | 212 | 219 | 7 | 2517 | 63 | 169 | 9 | 45 | 9 | 120 | |
| SPB 224-3 | SPB | 3 | 224 | 231 | 7 | 2517 | 63 | 181 | 9 | 45 | 9 | 120 | |
| SPB 236-3 | SPB | 3 | 236 | 243 | 7 | 2517 | 63 | 193 | 9 | 45 | 9 | 120 | |
| SPB 250-3 | SPB | 3 | 250 | 257 | 7 | 3020 | 63 | 207 | 6 | 51 | 6 | 150 | |
| SPB 265-3 | SPB | 3 | 265 | 272 | 5 | 3020 | 63 | 222 | 6 | 51 | 6 | 150 | |
| SPB 280-3 | SPB | 3 | 280 | 287 | 5 | 3020 | 63 | 237 | 6 | 51 | 6 | 150 | |
| SPB 300-3 | SPB | 3 | 300 | 307 | 5 | 3020 | 63 | 257 | 6 | 51 | 6 | 150 | |
| SPB 315-3 | SPB | 3 | 315 | 322 | 5 | 3020 | 63 | 272 | 6 | 51 | 6 | 150 | |
| SPB 335-3 | SPB | 3 | 335 | 342 | 5 | 3020 | 63 | 292 | 6 | 51 | 6 | 150 | |
| SPB 355-3 | SPB | 3 | 355 | 362 | 5 | 3020 | 63 | 312 | 6 | 51 | 6 | 150 | |
| SPB 375-3 | SPB | 3 | 375 | 382 | 5 | 3020 | 63 | 332 | 6 | 51 | 6 | 150 | |
| SPB 400-3 | SPB | 3 | 400 | 407 | 4 | 3535 | 63 | 357 | 13 | 89 | 13 | 170 | |
| SPB 425-3 | SPB | 3 | 425 | 432 | 4 | 3535 | 63 | 382 | 13 | 89 | 13 | 170 | |
| SPB 450-3 | SPB | 3 | 450 | 457 | 4 | 3535 | 63 | 407 | 13 | 89 | 13 | 170 | |
| SPB 500-3 | SPB | 3 | 500 | 507 | 4 | 3535 | 63 | 457 | 13 | 89 | 13 | 170 | |
| SPB 560-3 | SPB | 3 | 560 | 567 | 4 | 3535 | 63 | 517 | 13 | 89 | 13 | 170 | |
| SPB 630-3 | SPB | 3 | 630 | 637 | 4 | 3535 | 63 | 587 | 13 | 89 | 13 | 170 | |
| SPB 710-3 | SPB | 3 | 710 | 717 | 4 | 3535 | 63 | 667 | 13 | 89 | 13 | 170 | |
| SPB 800-3 | SPB | 3 | 800 | 807 | 4 | 3535 | 63 | 757 | 13 | 89 | 13 | 170 | |
| SPB 900-3 | SPB | 3 | 900 | 907 | 4 | 3535 | 63 | 857 | 13 | 89 | 13 | 170 | |
| SPB 1000-3 | SPB | 3 | 1000 | 1007 | 4 | 4040 | 63 | 957 | 19,5 | 102 | 19,5 | 210 | |
| SPB 1250-3 | SPB | 3 | 1250 | 1257 | 4 | 4040 | 63 | 1207 | 19,5 | 102 | 19,5 | 210 |
Dimensions are taken from the KYS 2025 product catalogue (p. 59). Current values are confirmed with your quote.
