TAPER BUSH PULLEYProduct Group 02
V-Belt Pulleys
V-groove pulleys fitted with taper bushes, cast in our own foundry and precision machined. Alongside the standard profiles, we produce custom sizes to your technical drawing.
- Fast and precise mounting with a taper bush
- SPZ, SPA, SPB and SPC groove profiles
- Cast in our own foundry, machined on our own machine park
- Phosphate-coated or painted finish
- Custom sizes to your technical drawing on request
30 products · SPB · 2 grooves

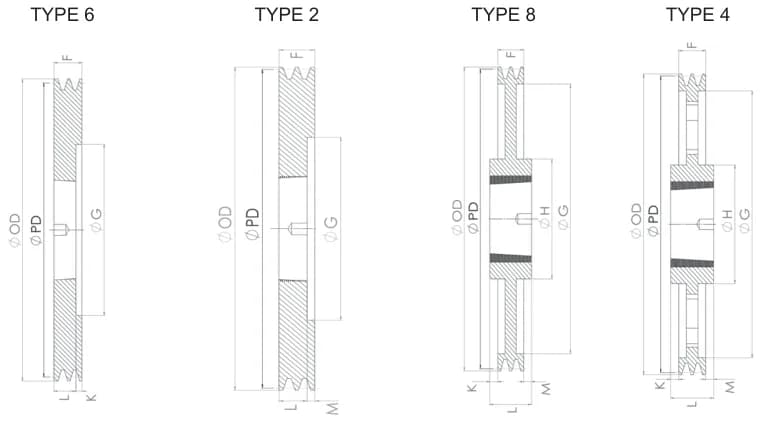

| Product Code | Profile | Grooves | Pitch diameter (PD)mm | Outside diameter (OD)mm | Pulley type | Bush no. | Fmm | Gmm | Kmm | Lmm | Mmm | Hmm | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPB 100-2 | SPB | 2 | 100 | 107 | 6 | 1610 | 44 | 62 | 19 | 25 | - | - | |
| SPB 106-2 | SPB | 2 | 106 | 113 | 6 | 1610 | 44 | 67 | 19 | 25 | - | - | |
| SPB 112-2 | SPB | 2 | 112 | 119 | 6 | 1610 | 44 | 72 | 19 | 25 | - | - | |
| SPB 118-2 | SPB | 2 | 118 | 125 | 2 | 1610 | 44 | 78 | - | 25 | 19 | - | |
| SPB 125-2 | SPB | 2 | 125 | 132 | 2 | 2012 | 44 | 82 | - | 32 | 12 | - | |
| SPB 132-2 | SPB | 2 | 132 | 139 | 2 | 2012 | 44 | 89 | - | 32 | 12 | - | |
| SPB 140-2 | SPB | 2 | 140 | 147 | 2 | 2012 | 44 | 97 | - | 32 | 12 | - | |
| SPB 150-2 | SPB | 2 | 150 | 157 | 2 | 2012 | 44 | 107 | - | 32 | 12 | - | |
| SPB 160-2 | SPB | 2 | 160 | 167 | 2 | 2012 | 44 | 117 | - | 32 | 12 | - | |
| SPB 170-2 | SPB | 2 | 170 | 177 | 2 | 2012 | 44 | 127 | - | 32 | 12 | - | |
| SPB 180-2 | SPB | 2 | 180 | 187 | 8 | 2517 | 44 | 137 | 0,5 | 45 | 0,5 | 120 | |
| SPB 190-2 | SPB | 2 | 190 | 197 | 8 | 2517 | 44 | 147 | 0,5 | 45 | 0,5 | 120 | |
| SPB 200-2 | SPB | 2 | 200 | 207 | 8 | 2517 | 44 | 157 | 0,5 | 45 | 0,5 | 120 | |
| SPB 212-2 | SPB | 2 | 212 | 219 | 8 | 2517 | 44 | 169 | 0,5 | 45 | 0,5 | 120 | |
| SPB 224-2 | SPB | 2 | 224 | 231 | 8 | 2517 | 44 | 181 | 0,5 | 45 | 0,5 | 120 | |
| SPB 236-2 | SPB | 2 | 236 | 243 | 8 | 2517 | 44 | 193 | 0,5 | 45 | 0,5 | 120 | |
| SPB 250-2 | SPB | 2 | 250 | 257 | 4 | 2517 | 44 | 207 | 0,5 | 45 | 0,5 | 120 | |
| SPB 265-2 | SPB | 2 | 265 | 272 | 4 | 2517 | 44 | 222 | 0,5 | 45 | 0,5 | 120 | |
| SPB 280-2 | SPB | 2 | 280 | 287 | 4 | 2517 | 44 | 237 | 0,5 | 45 | 0,5 | 120 | |
| SPB 300-2 | SPB | 2 | 300 | 307 | 4 | 2517 | 44 | 257 | 0,5 | 45 | 0,5 | 120 | |
| SPB 315-2 | SPB | 2 | 315 | 322 | 4 | 2517 | 44 | 272 | 0,5 | 45 | 0,5 | 120 | |
| SPB 335-2 | SPB | 2 | 335 | 342 | 4 | 2517 | 44 | 292 | 0,5 | 45 | 0,5 | 120 | |
| SPB 355-2 | SPB | 2 | 355 | 362 | 4 | 3020 | 44 | 312 | 3,5 | 51 | 3,5 | 150 | |
| SPB 375-2 | SPB | 2 | 375 | 382 | 4 | 3020 | 44 | 332 | 3,5 | 51 | 3,5 | 150 | |
| SPB 400-2 | SPB | 2 | 400 | 407 | 4 | 3020 | 44 | 357 | 3,5 | 51 | 3,5 | 150 | |
| SPB 425-2 | SPB | 2 | 425 | 432 | 4 | 3020 | 44 | 382 | 3,5 | 51 | 3,5 | 150 | |
| SPB 450-2 | SPB | 2 | 450 | 457 | 4 | 3020 | 44 | 407 | 3,5 | 51 | 3,5 | 150 | |
| SPB 500-2 | SPB | 2 | 500 | 507 | 4 | 3020 | 44 | 457 | 3,5 | 51 | 3,5 | 150 | |
| SPB 560-2 | SPB | 2 | 560 | 567 | 4 | 3020 | 44 | 517 | 3,5 | 51 | 3,5 | 150 | |
| SPB 630-2 | SPB | 2 | 630 | 637 | 4 | 3020 | 44 | 587 | 3,5 | 51 | 3,5 | 150 |
Dimensions are taken from the KYS 2025 product catalogue (p. 58). Current values are confirmed with your quote.
