Triger Kasnaklar

Kaymasız, senkron hareket iletimi için hassas diş profili.

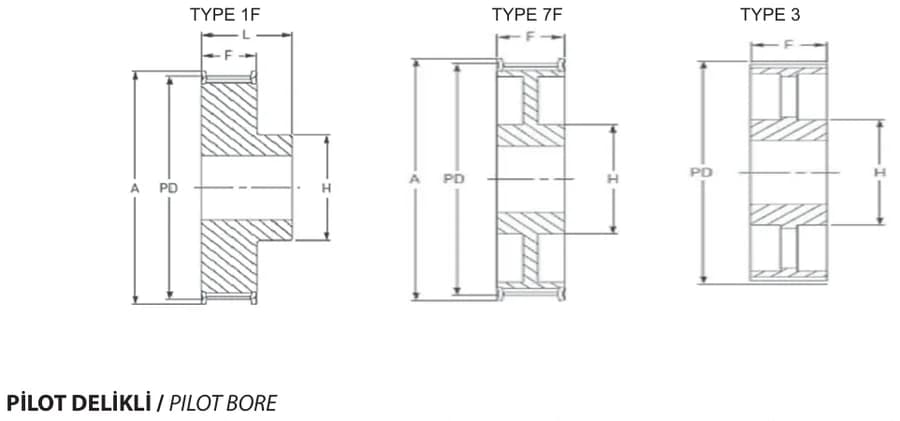

32 ürün · 8M50 · Pilot delikli

Ürün Kodu	Diş sayısı	P.Dmm	Amm	Tip	Delik min.mm	Delik max.mm	Hmm	Fmm	Lmm
8M50-22	22	56,02	65	1F	12	30	43	60	70
8M50-23	23	58,57	65	1F	12	30	45	60	70
8M50-24	24	61,12	70	1F	12	30	45	60	70
8M50-25	25	63,66	71	1F	12	35	45	60	70
8M50-26	26	66,21	75	1F	12	35	50	60	70
8M50-27	27	68,75	75	1F	12	35	50	60	70
8M50-28	28	71,3	80	1F	15	35	50	60	70
8M50-29	29	73,85	85	1F	15	35	55	60	70
8M50-30	30	76,39	85	1F	15	35	55	60	70
8M50-31	31	78,94	87	1F	15	40	55	60	70
8M50-32	32	81,49	90	1F	15	40	60	60	70
8M50-33	33	84,03	90	1F	15	45	60	60	70
8M50-34	34	86,58	95	1F	15	45	70	60	70
8M50-35	35	89,13	95	1F	15	45	70	60	70
8M50-36	36	91,67	100	1F	15	45	70	60	70
8M50-38	38	96,77	105	1F	15	45	75	60	70
8M50-40	40	101,86	110	1F	18	45	75	60	70
8M50-42	42	106,95	111	1F	18	45	75	60	70
8M50-44	44	112,05	121	1F	18	45	75	60	70
8M50-45	45	114,59	121	1F	18	45	75	60	70
8M50-48	48	122,23	131	1F	18	45	80	60	70
8M50-50	50	127,32	131	7F	18	45	80	60	60
8M50-52	52	132,42	140	7F	18	45	80	60	60
8M50-56	56	142,6	151	7F	18	50	90	60	60
8M50-64	64	162,97	172	7F	18	55	100	60	60
8M50-72	72	183,35	192	7F	18	55	100	60	60
8M50-80	80	203,72	-	3	18	60	110	60	60
8M50-90	90	229,18	-	3	18	60	110	60	60
8M50-112	112	285,21	-	3	18	60	110	60	60
8M50-144	144	366,69	-	3	20	60	110	60	60
8M50-168	168	427,81	-	3	20	65	120	60	60
8M50-192	192	488,92	-	3	20	70	130	60	60
