Triger Kasnaklar

Kaymasız, senkron hareket iletimi için hassas diş profili.

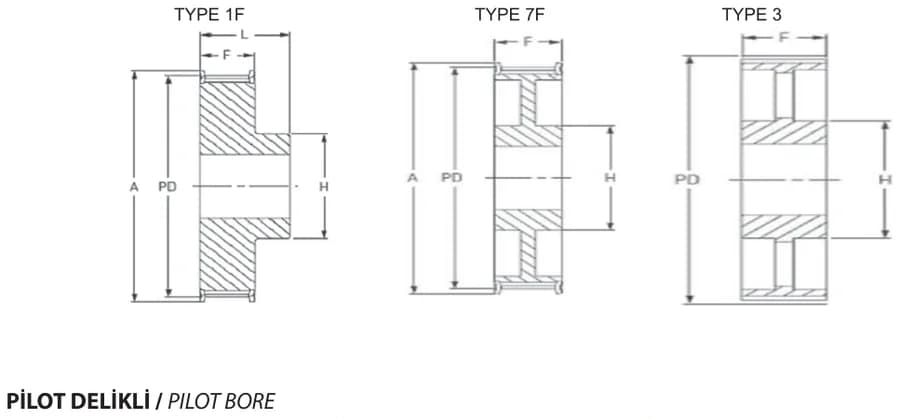

33 ürün · 8M85 · Pilot delikli

Ürün Kodu	Diş sayısı	P.Dmm	Amm	Tip	Delik min.mm	Delik max.mm	Hmm	Fmm	Lmm
8M85-22	22	56,02	65	1F	12	30	43	95	105
8M85-23	23	58,57	65	1F	12	30	45	95	105
8M85-24	24	61,12	70	1F	12	30	45	95	105
8M85-25	25	63,66	71	1F	12	35	45	95	105
8M85-26	26	66,21	75	1F	12	35	50	95	105
8M85-27	27	68,75	75	1F	15	35	50	95	105
8M85-28	28	71,3	80	1F	15	35	50	95	105
8M85-29	29	73,85	85	1F	15	35	55	95	105
8M85-30	30	76,39	85	1F	15	35	55	95	105
8M85-31	31	78,94	87	1F	15	40	55	95	105
8M85-32	32	81,49	90	1F	15	40	60	95	105
8M85-33	33	84,03	90	1F	15	45	60	95	105
8M85-34	34	86,58	95	1F	15	45	70	95	105
8M85-35	35	89,13	95	1F	15	45	70	95	105
8M85-36	36	91,67	100	1F	15	45	70	95	105
8M85-38	38	96,77	105	1F	18	45	75	95	105
8M85-40	40	101,86	110	1F	18	45	75	95	105
8M85-42	42	106,95	111	1F	18	45	75	95	105
8M85-44	44	112,05	121	1F	18	45	75	95	105
8M85-45	45	114,59	121	1F	18	45	75	95	105
8M85-48	48	122,23	131	1F	18	45	80	95	105
8M85-50	50	127,32	131	1F	18	45	80	95	105
8M85-52	52	132,42	140	1F	18	45	80	95	105
8M85-56	56	142,6	151	1F	20	50	90	95	105
8M85-60	60	152,79	158	1F	20	55	100	95	105
8M85-64	64	162,97	172	7F	20	55	100	95	95
8M85-72	72	183,35	192	7F	20	60	110	95	95
8M85-80	80	203,72	-	3	20	60	110	95	95
8M85-90	90	229,18	-	3	20	60	110	95	95
8M85-112	112	285,21	-	3	24	60	110	95	95
8M85-144	144	366,69	-	3	24	65	120	95	95
8M85-168	168	427,81	-	3	24	65	120	95	95
8M85-192	192	488,92	-	3	24	70	130	95	95
