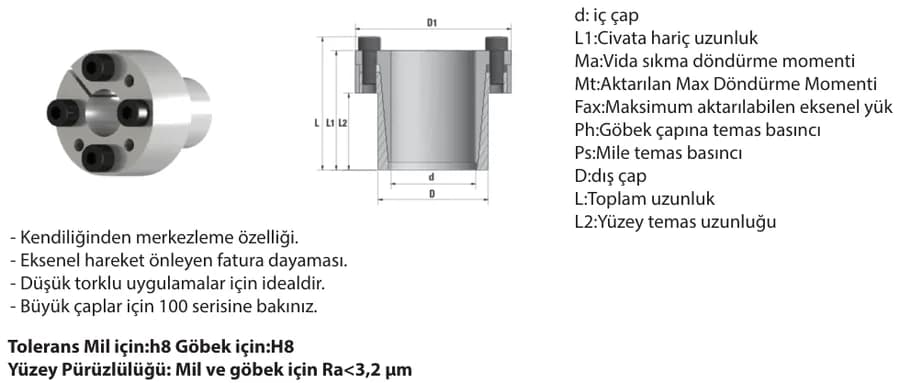

15 products · 100M Series
| Product Code | dmm | Dmm | D1mm | L2mm | L1mm | Lmm | Number of bolts | Bolt (DIN 912 12.9) | MaNm | MtNm | FaxkN | PsN/mm² | PhN/mm² | Weightkg | Add |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100M-6 | 6 | 14 | 25 | 10 | 21 | 24 | 3 | M3 | 2 | 12 | 4 | 185 | 80 | 0,04 | |
| 100M-7 | 7 | 15 | 27 | 12 | 25 | 29 | 3 | M4 | 5 | 25 | 7 | 235 | 110 | 0,06 | |
| 100M-8 | 8 | 15 | 27 | 12 | 25 | 29 | 3 | M4 | 5 | 29 | 7 | 205 | 110 | 0,05 | |
| 100M-9 | 9 | 16 | 28 | 14 | 26 | 30 | 4 | M4 | 5 | 44 | 10 | 205 | 115 | 0,06 | |
| 100M-10 | 10 | 16 | 28 | 14 | 26 | 30 | 4 | M4 | 5 | 49 | 10 | 185 | 115 | 0,06 | |
| 100M-11 | 11 | 18 | 32 | 14 | 26 | 30 | 4 | M4 | 5 | 53 | 10 | 170 | 105 | 0,07 | |
| 100M-12 | 12 | 18 | 32 | 14 | 26 | 30 | 4 | M4 | 5 | 58 | 10 | 160 | 105 | 0,07 | |
| 100M-13 | 13 | 23 | 38 | 14 | 26 | 30 | 4 | M4 | 5 | 63 | 10 | 140 | 80 | 0,11 | |
| 100M-14 | 14 | 23 | 38 | 14 | 26 | 30 | 4 | M4 | 17 | 68 | 10 | 130 | 80 | 0,12 | |
| 100M-15 | 15 | 24 | 45 | 16 | 36 | 42 | 3 | M6 | 17 | 127 | 17 | 185 | 115 | 0,22 | |
| 100M-16 | 16 | 24 | 45 | 16 | 36 | 42 | 3 | M6 | 17 | 136 | 17 | 175 | 115 | 0,22 | |
| 100M-17 | 17 | 26 | 47 | 18 | 38 | 44 | 4 | M6 | 17 | 180 | 22 | 190 | 125 | 0,25 | |
| 100M-18 | 18 | 26 | 47 | 18 | 38 | 44 | 4 | M6 | 17 | 200 | 22 | 180 | 125 | 0,24 | |
| 100M-19 | 19 | 27 | 49 | 18 | 38 | 44 | 4 | M6 | 17 | 210 | 22 | 170 | 120 | 0,26 | |
| 100M-20 | 20 | 28 | 50 | 18 | 38 | 44 | 4 | M6 | 17 | 220 | 22 | 160 | 115 | 0,27 |
Dimensions are taken from the KYS 2025 product catalogue (p. 33). Current values are confirmed with your quote.
